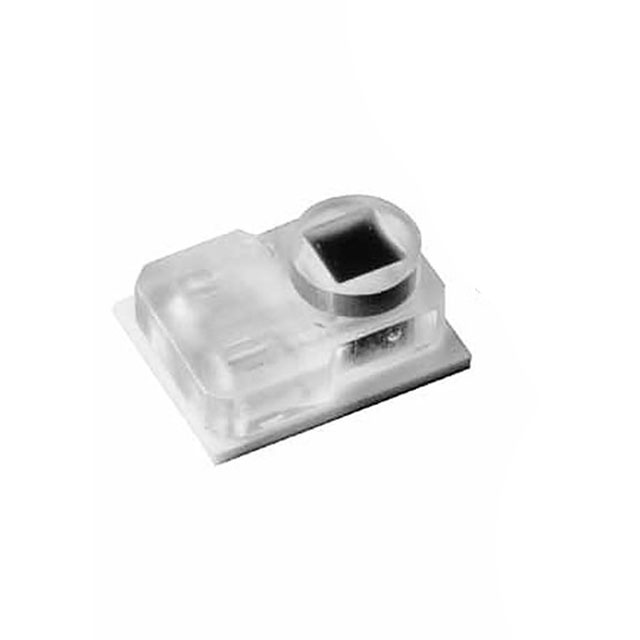

NPC-100 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Amphenol Advanced Sensors (NovaSensor). Its product description is SENSOR 5.8PSIG 0.19". Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for NPC-100
- Description：SENSOR 5.8PSIG 0.19"
- Series：NPC-100, NovaSensor
- Mfr：Amphenol Advanced Sensors (NovaSensor)
- Package：Tray
- Applications：Board Mount
- Pressure Type：Vented Gauge
- Operating Pressure：-0.97PSI ~ 5.8PSI (-6.67kPa ~ 40kPa)
- Output Type：Wheatstone Bridge
- Output：-
- Accuracy：±2%
- Voltage - Supply：1V ~ 10V
- Port Size：Male - 0.19" (4.8mm) Tube
- Port Style：Barbless
- Features：Temperature Compensated
- Termination Style：SMD (SMT) Tab
- Maximum Pressure：125PSI (861.84kPa)
- Operating Temperature：15°C ~ 40°C
- Mounting Type：-
- Package / Case：Module
- Supplier Device Package：-
Pressure Sensors Transducers datasheet and documents for NPC-100
Pressure Sensors Transducers Overview
The NPC-100 is a medical-grade pressure sensor designed for disposable applications. It features a vented gauge pressure type with an operating range of -0.97 PSI to 5.8 PSI (-6.67 kPa to 40 kPa). The device utilizes SMD (SMT) tab termination and operates on a supply voltage of 1V to 10V.
Pressure Sensors Transducers Feature Summary
- Designed specifically for use in disposable medical applications
- Features vented gauge pressure sensing capability
- Utilizes surface mount (SMD) tab termination style
Pressure Sensors Transducers Applications
- Disposable medical devices
- Medical pressure monitoring systems
Pressure Sensors Transducers Procurement Notes
Verify the specific manufacturer part number against official Amphenol Advanced Sensors documentation to confirm exact specifications. Ensure compatibility with required supply voltage ranges and termination styles for your circuit design before procurement.
Pressure Sensors Transducers Selection Notes
Select this component when designing disposable medical equipment requiring vented gauge pressure measurement. Confirm that the SMD tab termination fits your PCB layout and that the 1V to 10V supply range aligns with your system power architecture.
Pressure Sensors Transducers Part Context
The NPC-100 belongs to the NovaSensor family of pressure sensors manufactured by Amphenol Advanced Sensors. This series focuses on providing reliable sensing solutions tailored for the medical industry, particularly where single-use or disposable constraints apply.
