NPC-1210-015G-1-S

Pressure Sensors Transducers Overview

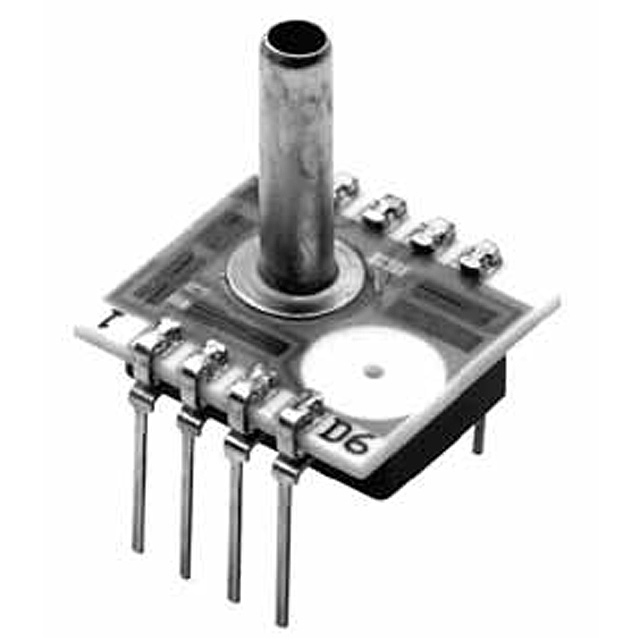

The NPC-1210-015G-1-S is a board-mount pressure sensor from the Amphenol NovaSensor NPC series. It features a vented gauge pressure type with a working pressure of 15 PSI (103.42 kPa). The device provides an analog output ranging from 0 mV to 100 mV and operates within a temperature range of -40°C to +125°C. It utilizes a DIP-8 module package for through-hole installation.

Pressure Sensors Transducers Feature Summary

• Utilizes Senstable piezoresistive technology with ion-implanted silicon sensing elements
• Features a dual in-line package structure compatible with printed circuit board installation
• Includes temperature compensation for stable performance across operating ranges

Pressure Sensors Transducers Applications

• Medical devices such as blood pressure monitors, respirators, and infusion pumps
• HVAC systems and ventilation equipment
• Airflow detection applications
• Computer peripheral devices
• General process control systems

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'S' against official documentation to confirm it denotes the correct pin configuration or variant status. Ensure compatibility with required through-hole mounting processes and validate that the 15 PSI gauge rating aligns with system pressure requirements before procurement.

Pressure Sensors Transducers Selection Notes

Select this component when a low-cost, high-volume solution for compatible gas media is required. The 15 PSI gauge range suits moderate pressure monitoring tasks. Consider the ±0.1% accuracy and 100 mV output span for signal conditioning needs. Verify interface compatibility with target PCB layouts.

Pressure Sensors Transducers Part Context

This part belongs to the NPC-1210 series, designed for cost-effective, high-volume applications. The series employs Senstable technology, integrating force-to-electric conversion via precision mechanical structures and Wheatstone bridge circuits. It supports absolute, gauge, and differential pressure measurements for dry gases.

Pressure Sensors Transducers Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-referencing with other models in the NPC-1210 series may be necessary if specific variants are unavailable.
