NPC-1220-100G-1-N

Pressure Sensors Transducers Overview

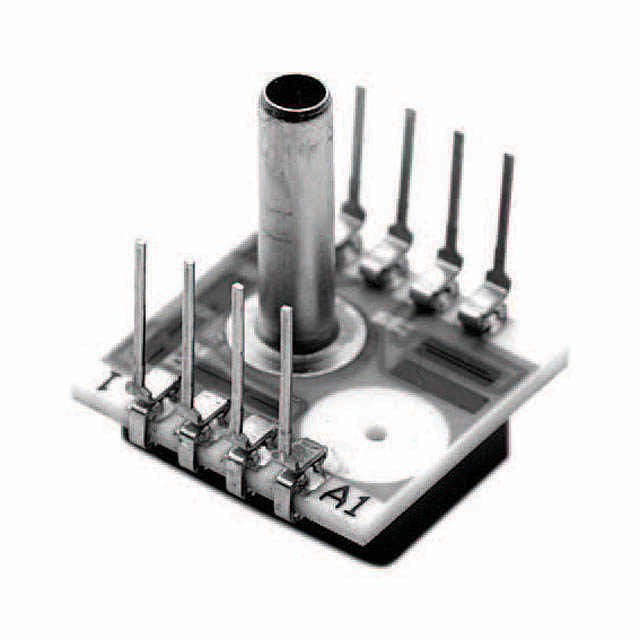

The NPC-1220-100G-1-N is a board-mount pressure sensor from the Amphenol Advanced Sensors (NovaSensor) NPC-1220 series. It features an exhaust gauge pressure type with a working pressure of 100 PSI (689.48 kPa). The device utilizes a Wheatstone bridge output configuration, providing a signal range of 0 mV to 100 mV. It is housed in an 8-DIP module package designed for through-hole termination on printed circuit boards. The sensor includes temperature compensation and maintains an accuracy of ±0.1%. It operates within a temperature range of -40°C to 125°C and has a maximum pressure rating of 300 PSI (2068.43 kPa).

Pressure Sensors Transducers Feature Summary

• Features an 8-DIP module package suitable for direct PCB installation via through-hole pins.
• Incorporates Senstable piezoresistive sensing technology for high precision and reliability.
• Includes factory temperature compensation to ensure stable performance across operating ranges.
• Provides a differential analog voltage output compatible with standard signal conditioning circuits.

Pressure Sensors Transducers Applications

• Medical devices such as blood pressure monitors and infusion pumps
• HVAC systems and ventilation equipment monitoring
• Industrial process control and automation
• Computer peripheral devices requiring air flow detection

Pressure Sensors Transducers Procurement Notes

Verify the specific model suffix against official NovaSensor documentation to confirm port style and electrical characteristics. Ensure the required pressure range and output signal match the application design. Confirm RoHS compliance status and lead times directly with authorized distributors or the manufacturer prior to ordering.

Pressure Sensors Transducers Selection Notes

Select this component when a low-cost, high-accuracy board-mounted solution is required for gauge pressure measurement. The 8-DIP form factor simplifies assembly compared to surface-mount alternatives. Consider the 100 PSI working pressure limit and the need for external excitation voltage when designing the interface circuitry.

Pressure Sensors Transducers Part Context

This part belongs to the NPC-1220 series, which is engineered for cost-effective, high-volume applications. The series leverages advanced ion implantation processes for the silicon sensitive element, creating a robust Wheatstone bridge structure. It is widely used in industries demanding reliable, interchangeable sensors for gas media detection.

Pressure Sensors Transducers Replacement Considerations

Consult the official datasheet for cross-reference information. Verify that any substitute part matches the 8-DIP package dimensions, pinout configuration, and 100 PSI pressure rating to ensure mechanical and functional compatibility.
