NPC-410-050G-1-L

Pressure Sensors Transducers Overview

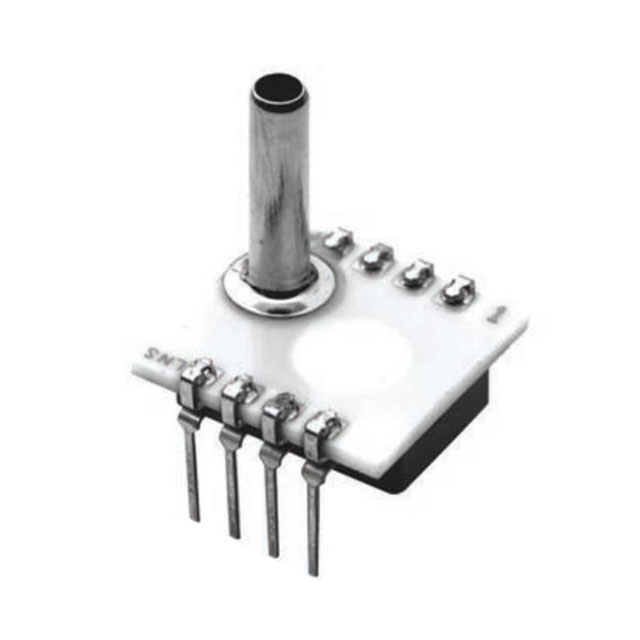

The NPC-410-050G-1-L is a board-mount pressure sensor from the Amphenol NovaSensor NPC-410 series. It features a gauge pressure type with a working pressure of 50 PSI (344.74 kPa) and a maximum pressure of 150 PSI (1034.21 kPa). The device provides an analog output via a Wheatstone bridge, ranging from 0 mV to 125 mV. It utilizes a male port size of 0.13 inches (3.23 mm) tube connection. The sensor operates within a temperature range of -40°C to 125°C and is housed in an 8-DIP module package for through-hole mounting.

Pressure Sensors Transducers Feature Summary

• Solid-state design ensuring long-term stability
• Temperature compensated for accuracy across operating range
• Wheatstone bridge analog output interface

Pressure Sensors Transducers Applications

• Industrial process control systems
• HVAC monitoring applications
• Medical equipment instrumentation

Pressure Sensors Transducers Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm port style and electrical characteristics. Ensure the selected variant matches the required pressure rating and output voltage range for the target circuit design. Confirm RoHS compliance status prior to integration into regulated assemblies.

Pressure Sensors Transducers Selection Notes

Select this component when a gauge pressure measurement up to 50 PSI is required with a standard DIP footprint. Consider the 0.13-inch male tube port for direct tubing connections. Evaluate the 125 mV output span against available amplifier gain stages to ensure sufficient signal resolution for the application.

Pressure Sensors Transducers Part Context

This part belongs to the NPC-410 series of medium pressure sensors designed by Amphenol Advanced Sensors. The series offers various pressure ranges and port configurations within a standardized 8-DIP package. It serves as a cost-effective solution for industrial applications requiring reliable solid-state pressure sensing capabilities.

Pressure Sensors Transducers Replacement Considerations

Direct substitutes include other variants within the NPC-410 series such as NPC-410-050G-1-S or NPC-410-050G-3-L, provided the port style and output specifications align with the system requirements.
