NPI-12-101GH (5V)

Pressure Sensors Transducers Overview

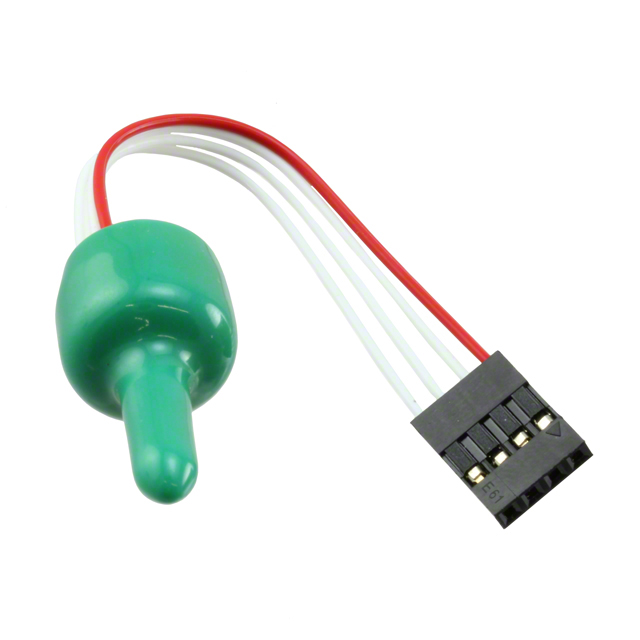

The NPI-12-101GH (5V) is a vented gauge pressure sensor from the Amphenol NovaSensor NPI-12 series. It features a cylindrical SIP module package with soft wire termination and a 1/8-inch NPT male port. The device provides an analog output ranging from 0mV to 100mV, powered by a 5V supply. It has a working pressure of 15 PSI (103.42 kPa) and a maximum pressure rating of 30 PSI (206.84 kPa). The sensor operates within a temperature range of -40°C to 125°C and includes temperature compensation.

Pressure Sensors Transducers Feature Summary

• Integrated temperature compensation for stable performance across operating ranges
• Cylindrical SIP module design with soft wire termination for flexible integration
• Standard 1/8-inch NPT threaded connection for secure mounting

Pressure Sensors Transducers Applications

• Industrial process control systems
• HVAC monitoring applications
• Fluid level measurement in tanks
• Compressed air system monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix designation to confirm the 5V power requirement and output span. Ensure the mechanical interface matches the 1/8-inch NPT port specification. Confirm RoHS3 compliance status if required by project specifications. Check the manufacturer datasheet for precise electrical characteristics and mounting torque requirements before integration.

Pressure Sensors Transducers Selection Notes

Select this component when a rugged industrial pressure sensor with a threaded port is required. The 15 PSI range suits low-pressure pneumatic applications. The analog millivolt output requires external signal conditioning. Consider the cylindrical package size for space-constrained panel installations.

Pressure Sensors Transducers Part Context

This part belongs to the NPI-12 series of industrial pressure sensors. The series offers various pressure ranges and output types. The NPI-12 model specifically utilizes a SIP module form factor. It is designed for demanding industrial environments requiring reliable gauge pressure measurement.

Pressure Sensors Transducers Replacement Considerations

Check the NPI-19 series for similar cylindrical packages with different port styles. Verify compatibility with existing circuitry if replacing other NPI models. Ensure the replacement part matches the 1/8-inch NPT thread specification.
