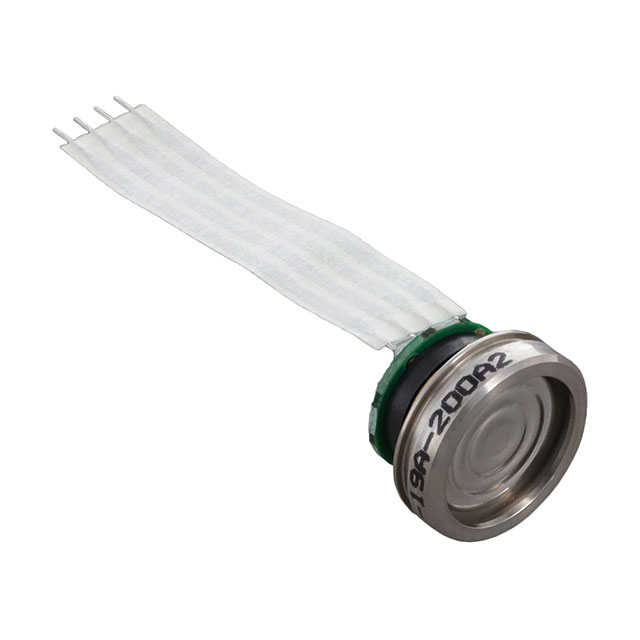

NPI-19A-015A2

$65.68

Description：SENSOR 15PSIA 14BIT
Series：NPI-19
Mfr：Amphenol Advanced Sensors (NovaSensor)
Package：Tray

SKU:5771fbed304a Category: Pressure Sensors, Transducers Brand: Amphenol Advanced Sensors (NovaSensor)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NPI-19A-015A2 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Amphenol Advanced Sensors (NovaSensor). Its product description is SENSOR 15PSIA 14BIT. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for NPI-19A-015A2

Description：SENSOR 15PSIA 14BIT
Series：NPI-19
Mfr：Amphenol Advanced Sensors (NovaSensor)
Package：Tray
Applications：Industrial Automation
Pressure Type：Absolute
Operating Pressure：15PSI (103.42kPa)
Output Type：I2C
Output：14 b
Accuracy：±1%
Voltage - Supply：2.5V ~ 5.5V
Port Size：-
Port Style：No Port
Features：Temperature Compensated
Termination Style：Wire Leads
Maximum Pressure：30PSI (206.84kPa)
Operating Temperature：-40°C ~ 125°C
Mounting Type：-
Package / Case：Cylinder
Supplier Device Package：-

Pressure Sensors Transducers datasheet and documents for NPI-19A-015A2

NPI-19A-015A2

Pressure Sensors Transducers Overview

The NPI-19A-015A2 is a digital I²C absolute pressure sensor from the Amphenol Advanced Sensors (NovaSensor) NPI-19 series. It features a cylindrical package with wire leads and no ports. The device measures pressures up to 15 PSI (103.42 kPa) with a maximum pressure rating of 30 PSI (206.84 kPa). It offers 14-bit resolution output and ±1% accuracy. Operating voltage ranges from 2.5V to 5.5V, and it includes temperature compensation. The sensor operates within a temperature range of -40°C to 125°C.

Pressure Sensors Transducers Feature Summary

Digital I²C interface for direct microcontroller connection
Media-isolated design suitable for harsh environments
Integrated temperature compensation for improved stability

Pressure Sensors Transducers Applications

Industrial automation systems
HVAC control units
Medical equipment pressure monitoring

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'A2' corresponds to the required lead frame and termination style. Confirm that the 15PSIA range aligns with system pressure requirements. Ensure I²C address configuration matches the target controller bus. Check RoHS compliance status for regulatory adherence in final assembly.

Pressure Sensors Transducers Selection Notes

Select this model when a compact, media-isolated digital solution is required. The 15PSIA range suits low-pressure industrial applications. The I²C interface simplifies wiring compared to analog outputs. Consider the cylindrical package constraints for integration into tight spaces. Verify power supply compatibility with the 2.5V to 5.5V operating window.

Pressure Sensors Transducers Part Context

This component belongs to the NPI-19 series of digital pressure sensors. The series is characterized by its robust construction for harsh environments. Other variants in the family offer different pressure ranges and interface options. The NPI-19 series is designed for reliability in industrial and medical settings.
