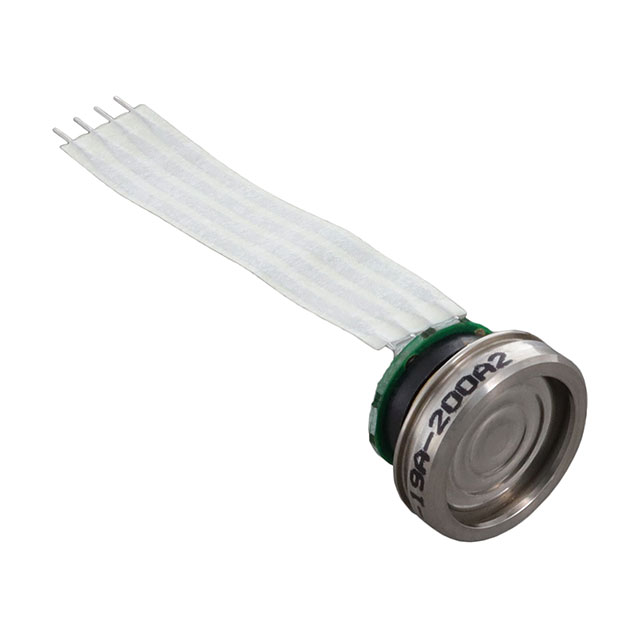

NPI-19A-100A2

$71.20

Description：SENSOR 100PSIA 14BIT
Series：NPI-19
Mfr：Amphenol Advanced Sensors (NovaSensor)
Package：Tray

SKU:a9be7b084130 Category: Pressure Sensors, Transducers Brand: Amphenol Advanced Sensors (NovaSensor)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NPI-19A-100A2 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Amphenol Advanced Sensors (NovaSensor). Its product description is SENSOR 100PSIA 14BIT. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for NPI-19A-100A2

Description：SENSOR 100PSIA 14BIT
Series：NPI-19
Mfr：Amphenol Advanced Sensors (NovaSensor)
Package：Tray
Applications：Industrial Automation
Pressure Type：Absolute
Operating Pressure：100PSI (689.48kPa)
Output Type：I2C
Output：14 b
Accuracy：±1%
Voltage - Supply：2.5V ~ 5.5V
Port Size：-
Port Style：No Port
Features：Temperature Compensated
Termination Style：Wire Leads
Maximum Pressure：200PSI (1378.95kPa)
Operating Temperature：-40°C ~ 125°C
Mounting Type：-
Package / Case：Cylinder
Supplier Device Package：-

Pressure Sensors Transducers datasheet and documents for NPI-19A-100A2

NPI-19A-100A2

Pressure Sensors Transducers Overview

The NPI-19A-100A2 is a digital absolute pressure sensor from the Amphenol NovaSensor NPI-19 series. It measures pressures from 0 to 100 psi with ±0.25% accuracy. The device features an I²C digital output and operates on a supply voltage between 2.5V and 5.5V. It provides a 14-bit resolution and includes temperature compensation. The sensor functions within a temperature range of -40°C to 125°C and utilizes a stainless steel housing.

Pressure Sensors Transducers Feature Summary

Digital I²C interface for direct microcontroller connectivity
Integrated temperature compensation for stable performance
Stainless steel construction for corrosion resistance

Pressure Sensors Transducers Applications

Industrial automation systems
HVAC monitoring
Medical equipment

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'A2' corresponds to the required 100 psi absolute pressure range and I²C digital output configuration. Confirm that the panel mount style and cylinder package form factor align with the target assembly constraints. Ensure the operating voltage requirements match the system's 2.5V to 5.5V supply rails before finalizing the order.

Pressure Sensors Transducers Selection Notes

Select this model when high precision (±0.25%) and digital integration are critical. The NPI-19A-100A2 is suitable for harsh environments due to its wide temperature tolerance and robust stainless steel design. Consider alternative pressure ranges or analog outputs if the application requires different measurement scales or legacy interface compatibility.

Pressure Sensors Transducers Part Context

This component belongs to the NPI-19 series, which specializes in media-isolated digital pressure sensors designed for industrial applications. The series offers various pressure ranges and output types, providing engineers with flexible options for integrating precise pressure monitoring into complex electronic systems without requiring external signal conditioning.
