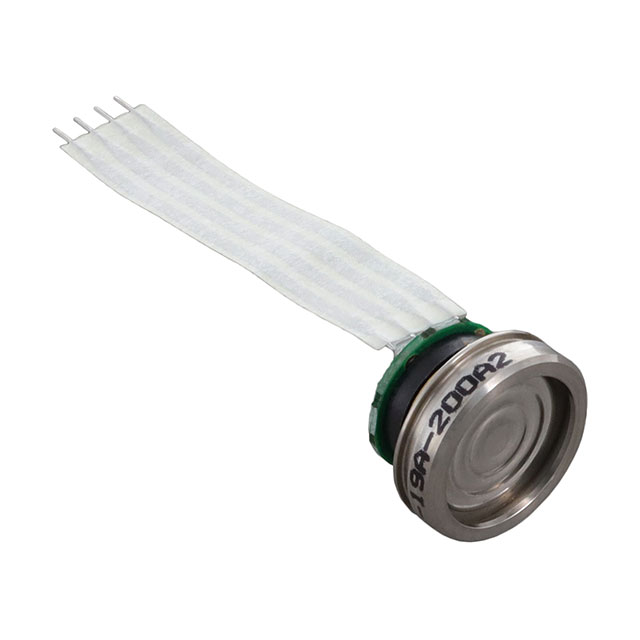

NPI-19A-200A2

$65.68

Description：SENSOR 200PSIA 14BIT
Series：NPI-19
Mfr：Amphenol Advanced Sensors (NovaSensor)
Package：Tray

SKU:a88647e616ef Category: Pressure Sensors, Transducers Brand: Amphenol Advanced Sensors (NovaSensor)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

NPI-19A-200A2 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Amphenol Advanced Sensors (NovaSensor). Its product description is SENSOR 200PSIA 14BIT. Review the specifications below when checking this part for your BOM.

Pressure Sensors Transducers specifications for NPI-19A-200A2

Description：SENSOR 200PSIA 14BIT
Series：NPI-19
Mfr：Amphenol Advanced Sensors (NovaSensor)
Package：Tray
Applications：Industrial Automation
Pressure Type：Absolute
Operating Pressure：200PSI (1378.95kPa)
Output Type：I2C
Output：14 b
Accuracy：±1%
Voltage - Supply：2.5V ~ 5.5V
Port Size：-
Port Style：No Port
Features：Temperature Compensated
Termination Style：Wire Leads
Maximum Pressure：400PSI (2757.9kPa)
Operating Temperature：-40°C ~ 125°C
Mounting Type：-
Package / Case：Cylinder
Supplier Device Package：-

Pressure Sensors Transducers datasheet and documents for NPI-19A-200A2

NPI-19A-200A2

Pressure Sensors Transducers Overview

The NPI-19A-200A2 is a digital I²C pressure sensor from the Amphenol NovaSensor NPI-19 series, designed for industrial applications. It features a cylindrical package with wire leads and measures absolute pressure up to 200 PSI (1378.95 kPa). The device offers a 14-bit resolution output and operates within a supply voltage range of 2.5V to 5.5V. It includes temperature compensation and supports a maximum overpressure of 400 PSI (2757.9 kPa). The sensor functions reliably in temperatures ranging from -40°C to 125°C.

Pressure Sensors Transducers Feature Summary

Digital I²C interface for direct microcontroller connectivity
Integrated temperature compensation for enhanced accuracy
Media-isolated design suitable for harsh environments

Pressure Sensors Transducers Applications

Industrial automation systems
HVAC monitoring
Medical equipment pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'A2' confirms the I²C digital output variant rather than analog models. Confirm the absolute pressure rating matches system requirements. Check RoHS compliance status for regulatory adherence. Ensure supply chain availability aligns with project timelines due to potential lead times.

Pressure Sensors Transducers Selection Notes

Select this model when digital communication via I²C is required instead of analog millivolt outputs. Consider the 200 PSI working pressure limit against peak system pressures. Evaluate the cylindrical form factor for space constraints. Verify compatibility with the host controller's I²C bus voltage levels.

Pressure Sensors Transducers Part Context

This component belongs to the NPI-19 series of industrial pressure sensors. The series includes various pressure ranges and output types, such as analog bridge and other digital variants. The NPI-19A-200A2 specifically denotes the 200 PSI absolute pressure range with I²C digital output capabilities.
