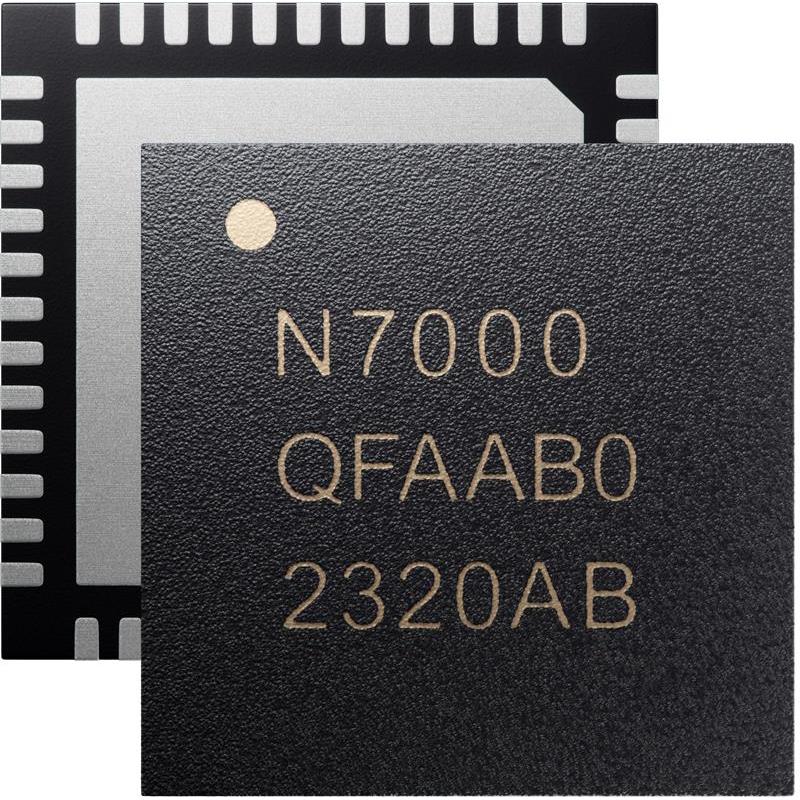

NRF7000-QFAA-R7

Overview

The NRF7000-QFAA-R7 is a low-power Wi-Fi 6 companion IC designed for seamless connectivity and locationing. It operates within the 2.4 GHz to 5 GHz frequency range, supporting 802.11a/b/g/n/ac/ax standards. The device utilizes SPI or QSPI interfaces and requires a supply voltage between 2.9 V and 4.5 V. Packaged in a 48-QFN (6x6) format, it serves as an RF System on a Chip (SoC) companion, enabling passive and active scanning capabilities while maintaining high security and low power consumption profiles.

Feature Summary

• Provides Wi-Fi 6 companion functionality with integrated RF for passive and active scanning
• Supports Wi-Fi-based locationing solutions using SSID data
• Ensures high security and seamless radio coexistence with host processors

Applications

• IoT devices requiring Wi-Fi based positioning
• Smart home appliances needing secure wireless connectivity
• Industrial sensors utilizing passive Wi-Fi scanning

Procurement Notes

Verify that the specific suffix R7 corresponds to the Tape & Reel packaging configuration required for automated assembly processes. Confirm compatibility with the host MCU interface specifications, specifically SPI or QSPI modes, prior to integration. Ensure moisture sensitivity handling protocols are followed during storage and soldering to maintain component integrity.

Selection Notes

Select this component when a dedicated Wi-Fi 6 radio is needed alongside a primary microcontroller. It is suitable for applications demanding low power consumption and robust security features without integrating full Wi-Fi processing into the main SoC. Consider its support for both 2.4 GHz and 5 GHz bands for flexible deployment scenarios.

Part Context

This part belongs to the nRF7000 series of companion ICs from Nordic Semiconductor. It complements Nordic's Bluetooth Low Energy and Thread/Matter capable SoCs by adding Wi-Fi capabilities. The series focuses on providing secure, low-power wireless connectivity options for Internet of Things (IoT) ecosystems.

Replacement Considerations

The nRF7001 and nRF7002 are related Wi-Fi 6 companion ICs within the same product family. Verify functional equivalence regarding interface requirements and supported frequency bands before substituting.
