NSCDANN100PGUNV

Pressure Sensors Transducers Overview

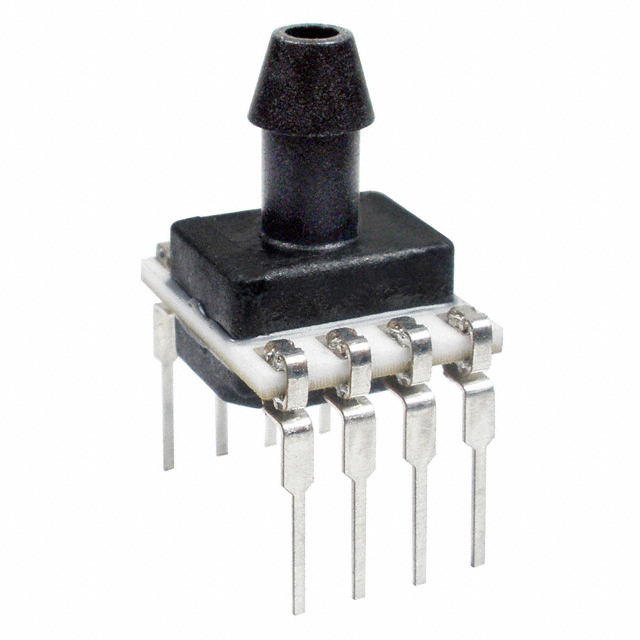

The NSCDANN100PGUNV is a board-mount pressure sensor from the TruStability® NSC series, manufactured by Honeywell Sensing and Productivity Solutions. It features an absolute pressure rating of 100 PSI (689.48 kPa) with a maximum pressure limit of 250 PSI (1723.69 kPa). The device utilizes a Wheatstone bridge output type, providing a signal range of 0mV to 86mV at a 5V supply. It operates within a temperature range of -40°C to 85°C and offers an accuracy of ±0.25%. The component is housed in an 8-DIP package with a top port style and PC pin termination.

Pressure Sensors Transducers Feature Summary

• Absolute pressure measurement capability for gauge-independent readings
• Wheatstone bridge analog output interface for direct integration
• High accuracy specification ensuring precise data acquisition
• Robust construction suitable for demanding industrial environments

Pressure Sensors Transducers Applications

• Industrial process control systems requiring absolute pressure monitoring
• HVAC equipment calibration and performance testing
• Medical device pressure sensing applications
• Automotive engine management system diagnostics

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors due to potential availability constraints. Confirm that the specific ordering suffix matches the required package and port configuration. Check for obsolescence status as this part may be subject to discontinuation notices. Ensure compatibility with existing PCB layouts regarding the 8-DIP footprint and pin spacing requirements before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this model when absolute pressure reference is critical rather than gauge or differential measurements. Consider the 8-DIP package size constraints against available board space. Evaluate the Wheatstone bridge output requirement against downstream signal conditioning capabilities. Verify that the operating temperature range aligns with the intended environmental conditions of the target application system.

Pressure Sensors Transducers Part Context

This sensor belongs to Honeywell's TruStability® NSC family, designed for reliable performance in various sensing applications. The NSC series typically offers high stability and accuracy characteristics. This specific part number represents a variant optimized for absolute pressure detection within the standard DIP package form factor commonly used in legacy and modern electronic designs.

Pressure Sensors Transducers Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Users should consult official Honeywell resources for current equivalent recommendations if this component becomes unavailable.
