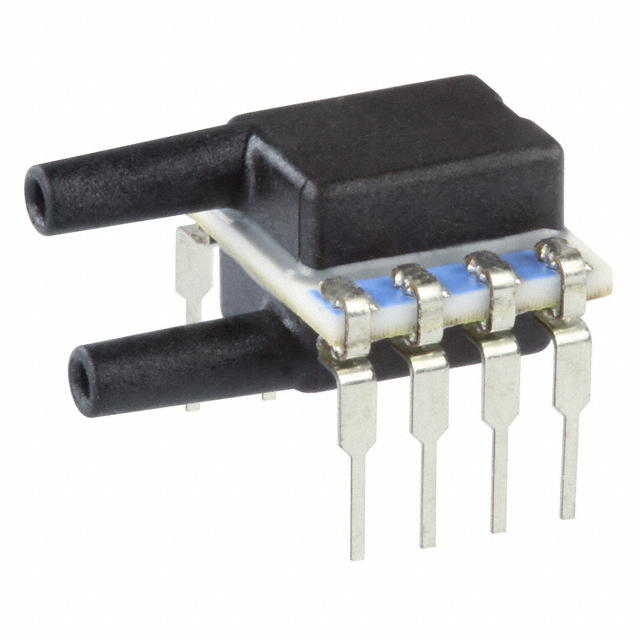

NSCDJJN010NDUNV is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Honeywell Sensing and Productivity Solutions. Its product description is SENSOR 0.36PSID 0.09" .0785V DIP. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for NSCDJJN010NDUNV
- Description：SENSOR 0.36PSID 0.09" .0785V DIP
- Series：TruStability® NSC
- Mfr：Honeywell Sensing and Productivity Solutions
- Package：Tray
- Applications：Board Mount
- Pressure Type：Differential
- Operating Pressure：±0.36PSI (±2.49kPa)
- Output Type：Wheatstone Bridge
- Output：0 mV ~ 78.5 mV (5V)
- Accuracy：±0.25%
- Voltage - Supply：2.7V ~ 6.5V
- Port Size：Male - 0.09" (2.34mm) Tube, Dual
- Port Style：Barbless
- Features：-
- Termination Style：PC Pin
- Maximum Pressure：±12.46PSI (±84.72kPa)
- Operating Temperature：-40°C ~ 85°C
- Mounting Type：Through Hole
- Package / Case：8-DIP (0.524", 13.30mm), Dual Ports, Same Side
- Supplier Device Package：8-DIP
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for NSCDJJN010NDUNV
Pressure Sensors Transducers Overview
The NSCDJJN010NDUNV is a differential pressure sensor from the Honeywell TruStability NSC series. It features a ±0.36 PSI (±2.49 kPa) operating range and supports a maximum pressure of ±12.46 PSI. The device utilizes a Wheatstone bridge output, providing a signal proportional to the applied differential pressure. Designed for through-hole mounting, it offers robust performance in demanding environments.
Pressure Sensors Transducers Feature Summary
- Utilizes Hall-effect technology for precise differential pressure measurement
- Provides analog Wheatstone bridge output for direct interface with control systems
- Engineered for high reliability in aerospace and defense applications
Pressure Sensors Transducers Applications
- Flight control surface position sensing
- Landing gear monitoring systems
- Engine system pressure monitoring
- Avionics architecture integration
Pressure Sensors Transducers Procurement Notes
Verify the specific model suffix against official Honeywell documentation to confirm exact pressure ratings and electrical characteristics. Ensure compatibility with required mounting configurations and environmental qualifications for the target application. Cross-reference part numbers with authorized distributors to avoid counterfeit components.
Pressure Sensors Transducers Selection Notes
Select this component when high-reliability differential pressure sensing is required for mission-critical aerospace or defense platforms. Consider its through-hole mounting style and analog output type during circuit design. Evaluate environmental specifications against operational temperature and shock requirements.
Pressure Sensors Transducers Part Context
This sensor belongs to the TruStability NSC family, designed for harsh environments. It integrates advanced sensing technologies to support flight control, ISR, and mission systems. The component is qualified for extreme conditions, including heavy vibration and electromagnetic interference, ensuring compliance with aerospace standards.
