NSCDLNN100PGUNV

Pressure Sensors Transducers Overview

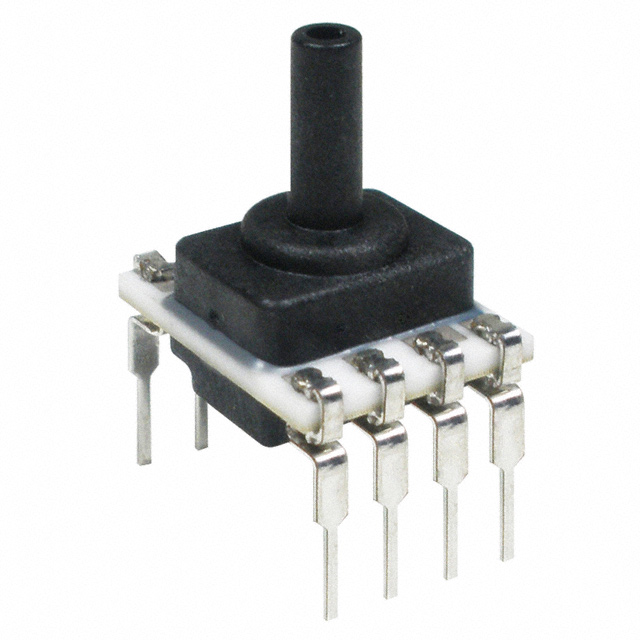

The Honeywell NSCDLNN100PGUNV is a board-mount pressure sensor from the TruStability® NSC series, designed for gauge pressure applications. It features a working pressure of 100 PSI (689.48 kPa) and a maximum pressure rating of 250 PSI (1723.69 kPa). The device utilizes a Wheatstone bridge output type, providing an analog signal range of 0mV to 86mV when supplied with 5V. It operates within a supply voltage range of 1.5V to 12V and maintains an accuracy of ±0.25%. The sensor is housed in a 4-SIP package with side ports and supports through-hole mounting.

Pressure Sensors Transducers Feature Summary

• Delivers high-accuracy analog measurements via a Wheatstone bridge interface
• Provides temperature compensation and amplification for stable performance
• Supports wide supply voltage operation for flexible system integration

Pressure Sensors Transducers Applications

• HVAC systems monitoring
• Industrial process control
• Medical equipment pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify component availability as this part may be discontinued or subject to limited supply constraints. Confirm that the specific package style and port configuration match your PCB layout requirements. Ensure that the operating temperature range aligns with your environmental conditions. Cross-reference the manufacturer datasheet for any recent updates regarding pinout or electrical characteristics before finalizing procurement plans.

Pressure Sensors Transducers Selection Notes

Select this model for applications requiring precise gauge pressure measurement up to 100 PSI. The analog Wheatstone bridge output is suitable for systems utilizing external amplification or ADCs. Consider the 4-SIP package dimensions for mechanical fit. Evaluate the ±0.25% accuracy against system tolerance requirements. Ensure the supply voltage range accommodates your power distribution network.

Pressure Sensors Transducers Part Context

This sensor belongs to the TruStability® NSC family, known for cost-effective sensing solutions. It complements other Honeywell pressure sensors like the HSC series, which offer digital outputs. The NSC series focuses on analog performance with integrated signal conditioning. It serves as a reliable component for general industrial and commercial pressure monitoring tasks where high precision is required.

Pressure Sensors Transducers Replacement Considerations

Check for direct substitutes within the NSC series such as NSCSANN100PGUNV. Verify compatibility with existing circuit designs if switching models. Consult official documentation for any pin-to-pin compatible alternatives.
