NSCDNNN015PAUNV

Pressure Sensors Transducers Overview

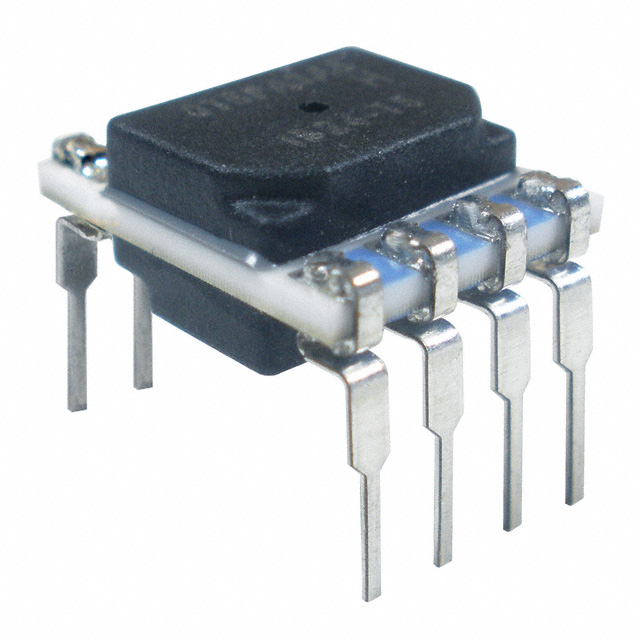

The NSCDNNN015PAUNV is a board-mount absolute pressure sensor from the TruStability TSC/NSC series by Honeywell Sensing and Productivity Solutions. It features a working pressure of 15 PSI (103.42 kPa) with a maximum pressure rating of 30 PSI (206.84 kPa). The device provides an analog voltage output ranging from 0.5 V to 4.5 V, powered by a supply voltage between 4.75 V and 5.25 V. It utilizes a 4-SIP package with through-hole PC pin termination and dual male ports measuring 0.19 inches (4.8 mm) on the same side. The sensor includes amplified output and temperature compensation, maintaining an accuracy of ±0.25% across an operating temperature range of -20°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Integrated signal amplification and temperature compensation for stable performance
• Dual male port configuration for direct tubing connection
• Through-hole mounting with standard PC pin termination

Pressure Sensors Transducers Applications

• Industrial process control systems
• HVAC monitoring equipment
• Medical gas analysis devices

Pressure Sensors Transducers Procurement Notes

Verify component availability status as this part may be discontinued or subject to limited distribution channels. Confirm that the specific ordering suffix matches the required package and port configuration. Ensure compatibility with existing PCB layouts regarding the 4-SIP footprint and pin spacing. Validate electrical parameters against system requirements before integration.

Pressure Sensors Transducers Selection Notes

Select this model when absolute pressure measurement within a 15 PSI range is required with high accuracy. The integrated temperature compensation simplifies calibration efforts in varying thermal environments. The through-hole design offers robust mechanical stability for industrial applications. Consider the analog voltage output interface for direct microcontroller or ADC connectivity without additional signal conditioning hardware.

Pressure Sensors Transducers Part Context

This component belongs to the TruStability TSC/NSC series, designed for cost-effective sensing solutions. Honeywell Sensing and Productivity Solutions specializes in industrial safety and emissions monitoring technologies. The series emphasizes reliability and precision for demanding operational conditions.

Pressure Sensors Transducers Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference options through official manufacturer channels if replacement is necessary.
