NSCDRNN100PGUNV

Pressure Sensors Transducers Overview

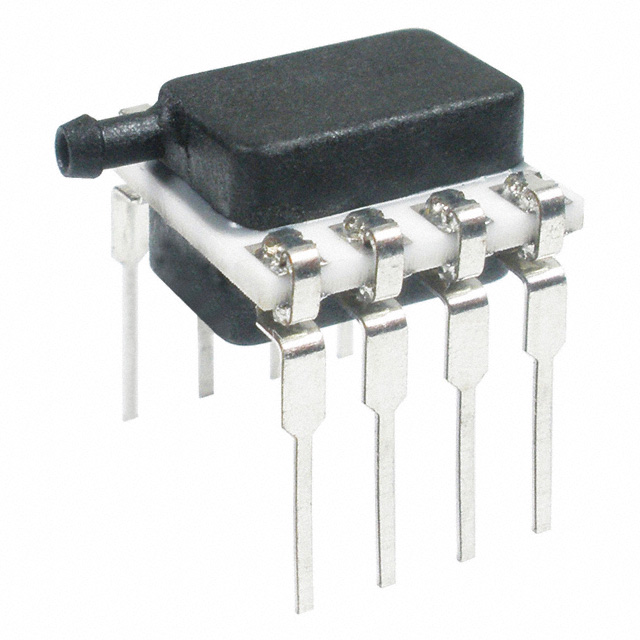

The NSCDRNN100PGUNV is a board-mount pressure sensor from the Honeywell TruStability NSC series. It features an 8-DIP package with side ports and PC pin termination. The device measures gauge pressure up to 100 PSI (689.48 kPa) with a maximum pressure rating of 250 PSI (1723.69 kPa). It operates on a supply voltage of 1.5V to 12V and provides an analog output via a Wheatstone bridge, ranging from 0mV to 86mV at 5V excitation. Accuracy is specified at ±0.25%. The sensor supports through-hole mounting and functions within a temperature range of -40°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Provides analog pressure measurement using a Wheatstone bridge output configuration
• Features integrated temperature compensation for stable performance across operating ranges
• Utilizes a rugged 8-DIP package designed for direct printed circuit board mounting

Pressure Sensors Transducers Applications

• Industrial process control systems requiring board-level pressure monitoring
• HVAC equipment utilizing low-voltage pressure sensing interfaces
• Medical devices needing compact gauge pressure measurement solutions

Pressure Sensors Transducers Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number against official Honeywell documentation. Confirm that the specific ordering suffix matches the required port style and electrical characteristics. Check current lifecycle status as availability may be limited due to production phases. Ensure compatibility with existing PCB layouts regarding the 8-DIP footprint and pin spacing before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this model when a low-cost, analog Wheatstone bridge output is preferred over digital interfaces. It is suitable for applications where microcontroller-based signal conditioning is available. Consider the wide supply voltage range for flexibility in system power design. Evaluate the 100 PSI working pressure against peak system loads to ensure safety margins are met during operation.

Pressure Sensors Transducers Part Context

This component belongs to the TruStability NSC family, which focuses on cost-effective silicon pressure sensors. The series offers standard analog outputs suitable for general-purpose industrial applications. It complements higher-performance digital variants like the HSC and SSC series by providing a basic interface for simpler system architectures.

Pressure Sensors Transducers Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify if other NSC series variants with identical pressure ratings and package dimensions can serve as functional replacements based on specific application requirements.
