NSCMNNN010BAUNV

Pressure Sensors Transducers Overview

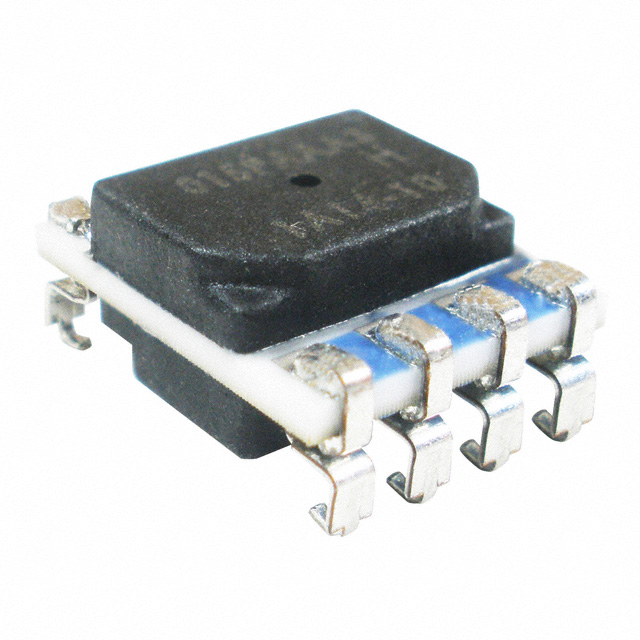

The Honeywell NSCMNNN010BAUNV is a differential pressure sensor from the TruStability NSC series. It features an 8-SMD, J-lead surface mount package with no ports. The device operates within a supply voltage range of 1.5V to 12V and delivers a Wheatstone bridge output of 0mV to 91.5mV at 5V. It has a working pressure of ±10PSI (±68.95kPa) and can withstand up to ±25PSI (±172.37kPa). Accuracy is specified at ±0.25%, with a operating temperature range of -40°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Provides calibrated analog output via a Wheatstone bridge configuration for direct interface with signal conditioning circuits.
• Utilizes silicon-based sensing technology integrated into a compact surface-mount package for automated assembly compatibility.
• Features temperature compensation to maintain accuracy across the specified industrial operating temperature range.

Pressure Sensors Transducers Applications

• Automotive infotainment systems
• Automotive instrument clusters

Pressure Sensors Transducers Procurement Notes

Verify component status as this part may be discontinued or subject to last-time buy restrictions. Confirm RoHS compliance and moisture sensitivity level (MSL 2) requirements for your manufacturing process. Ensure the specific J-lead termination style matches your PCB footprint design before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this model when a low-profile surface mount differential pressure sensor is required for automotive applications. Compare against other NSC series variants if different pressure ranges or output sensitivities are needed. Verify that the 1.5V to 12V supply range aligns with your system's power architecture.

Pressure Sensors Transducers Part Context

This component belongs to the Honeywell TruStability NSC series of silicon pressure sensors. These devices are designed for industrial and automotive markets, offering high reliability and precision in a small form factor. The series typically includes various pressure ranges and package options to suit diverse sensing needs.

Pressure Sensors Transducers Replacement Considerations

Check for official obsolescence notices. Consult Honeywell for recommended cross-reference parts within the NSC family that match the required pressure range and package dimensions.

Pressure Sensors Transducers FAQ

What is the output type of the NSCMNNN010BAUNV?

It provides a Wheatstone bridge analog output.

Is this sensor ported or unported?

It is an unported differential pressure sensor.
