NSCSANN100PGUNV

Pressure Sensors Transducers Overview

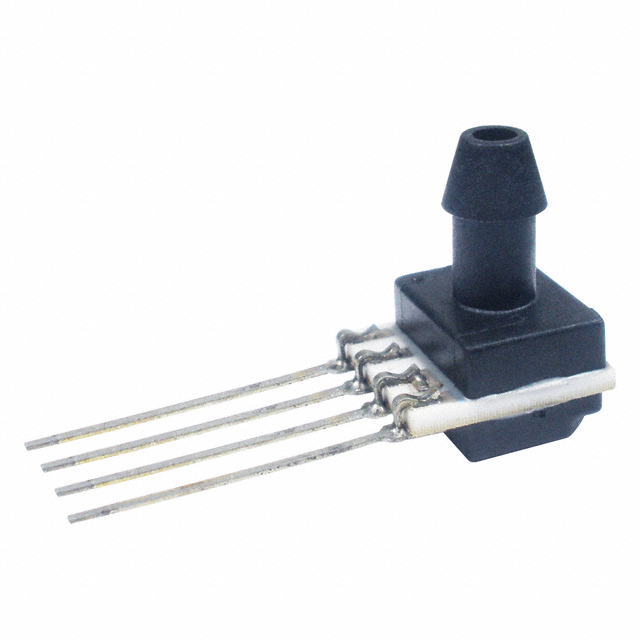

The NSCSANN100PGUNV is a board-mount pressure sensor from the TruStability® NSC series, manufactured by Honeywell Sensing and Productivity Solutions. It functions as an exhaust-type gauge pressure sensor with a working pressure of 100 PSI (689.48 kPa) and a maximum pressure rating of 250 PSI (1723.69 kPa). The device features a 0.19-inch (4.93 mm) male port with barb style and utilizes a 4-SIP side-port package with PC pin termination for through-hole mounting. It operates on a supply voltage range of 1.5V to 12V, producing a Wheatstone bridge output of 0mV to 86mV at 5V excitation. Accuracy is specified at ±0.25%, and it supports an operating temperature range of -40°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Exhaust-type gauge pressure sensing capability with high overpressure tolerance up to 250 PSI
• Integrated Wheatstone bridge output providing analog signal proportional to applied pressure
• Robust 4-SIP side-port package design facilitating direct through-hole board mounting
• Wide operational voltage range supporting flexible system integration across various power domains

Pressure Sensors Transducers Applications

• Board-mounted industrial process control systems requiring gauge pressure monitoring
• HVAC equipment utilizing low-voltage pressure feedback for regulation
• Medical devices needing compact, accurate pneumatic measurement interfaces
• Automotive subsystems operating within specified thermal and pressure limits

Pressure Sensors Transducers Procurement Notes

Verify component status prior to procurement as this specific part number is listed as obsolete in official distributor records. Confirm availability of alternative stock or last-time buy options directly with Honeywell Sensing and Productivity Solutions. Ensure that the 4-SIP side-port configuration and 0.19-inch male barb port dimensions match the target PCB layout and tubing requirements. Validate that the 1.5V to 12V supply range aligns with the system's power architecture before finalizing acquisition plans.

Pressure Sensors Transducers Selection Notes

Select this model when a dedicated gauge pressure sensor with a Wheatstone bridge output is required for board-level integration. The TruStability® NSC series offers calibrated performance suitable for applications demanding ±0.25% accuracy. Consider the 0.19-inch port size for compatible tubing connections. This sensor is appropriate for environments ranging from -40°C to 85°C. Evaluate the 4-SIP package constraints against available PCB real estate and ensure through-hole assembly capabilities are present in the manufacturing process.

Pressure Sensors Transducers Part Context

The NSCSANN100PGUNV belongs to the TruStability® NSC family, designed for reliable pressure measurement in compact form factors. It represents a specialized solution within Honeywell's broader sensing portfolio, focusing on board-mount applications. The series emphasizes stability and accuracy for industrial and commercial uses. As an exhaust-type gauge sensor, it measures pressure relative to atmospheric conditions, distinguishing it from absolute or differential variants within the same product line.

Pressure Sensors Transducers Replacement Considerations

Official documentation lists this part as obsolete. No public confirmed substitute part numbers are provided in the source material. Engineers must consult Honeywell Sensing and Productivity Solutions directly for current replacement recommendations or equivalent components that match the electrical and mechanical specifications.
