NSCSDRN060MDUNV

Pressure Sensors Transducers Overview

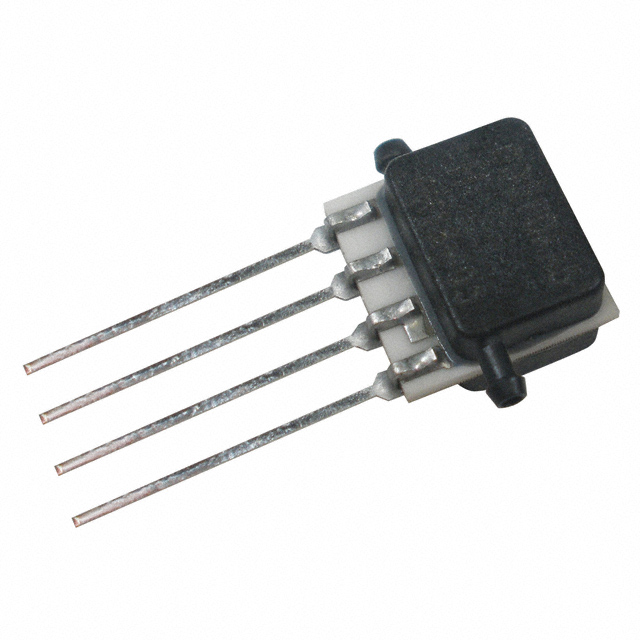

The Honeywell NSCSDRN060MDUNV is a TruStability differential pressure sensor designed for board mount applications. It features a piezoresistive sensing element housed in a ceramic SIP-4 package with through-hole termination. The device operates within a supply voltage range of 1.5V to 12V and provides an analog Wheatstone bridge output ranging from 0 mV to 190 mV at 5V excitation. It supports an operating pressure of ±0.87 PSI (±6 kPa) and a maximum non-destructive pressure of ±1.74 PSI (±12 kPa). Accuracy is specified at ±0.25%, with an operating temperature range of -40°C to 85°C.

Pressure Sensors Transducers Feature Summary

• Piezoresistive sensing technology ensures high stability and reliability for precise differential pressure measurements.
• Integrated compensation and amplification provide accurate analog output without requiring external signal conditioning circuits.
• Ceramic SIP-4 package construction offers robust environmental resistance suitable for demanding industrial environments.

Pressure Sensors Transducers Applications

• HVAC system airflow monitoring
• Medical equipment gas flow measurement
• Industrial process control systems

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix codes against official datasheets to confirm exact pressure ranges and output characteristics, as variations exist within the series. Confirm moisture sensitivity level (MSL 2) handling requirements during storage and assembly. Ensure supply voltage compatibility with the 1.5V to 12V operational range. Validate pin configuration and mounting type for PCB integration.

Pressure Sensors Transducers Selection Notes

Select this component when high accuracy and long-term stability are critical for low-pressure differential applications. The analog Wheatstone bridge output requires appropriate signal conditioning circuitry. Consider the through-hole mounting requirement and SIP-4 package dimensions for mechanical fit. Evaluate the operating temperature range against environmental conditions.

Pressure Sensors Transducers Part Context

This part belongs to the Honeywell TruStability NSC series, which focuses on high-accuracy, compensated pressure sensors. The series includes both digital and analog variants, offering flexibility for various interface requirements. The NSCSDRN model specifically denotes a differential pressure sensor with analog output, distinguishing it from absolute or gauge pressure types within the same family.

Pressure Sensors Transducers Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify that any substitute matches the SIP-4 package, differential pressure type, and analog output specifications. Cross-reference accuracy, temperature range, and supply voltage requirements to ensure functional equivalence.

Pressure Sensors Transducers FAQ

What is the output type of the NSCSDRN060MDUNV?

It provides an analog Wheatstone bridge output, typically ranging from 0 mV to 190 mV at 5V excitation.

Is the NSCSDRN060MDUNV a digital or analog sensor?

It is an analog sensor. Digital variants in the TruStability series typically feature I2C interfaces and different model suffixes.

What is the maximum non-destructive pressure for this sensor?

The maximum non-destructive pressure is ±1.74 PSI (±12 kPa), while the operating pressure is ±0.87 PSI (±6 kPa).
