NSCSGNN100PGUNV

Pressure Sensors Transducers Overview

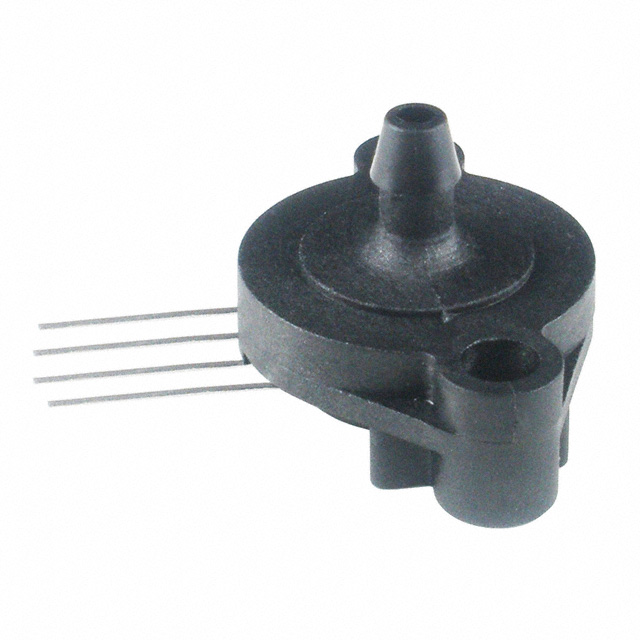

The Honeywell NSCSGNN100PGUNV is a board-mount pressure sensor from the TruStability NSC series. It features an analog Wheatstone bridge output of 0mV to 86mV at 5V excitation. The device has a working pressure of 100PSI (689.48kPa) and a maximum pressure rating of 250PSI (1723.69kPa). It utilizes a male port size of 0.19 inches (4.93mm) with barbed style. The sensor operates within a temperature range of -40°C to 85°C and uses a 4-SIP package with side ports.

Pressure Sensors Transducers Feature Summary

• Provides high-accuracy analog pressure measurement via a Wheatstone bridge interface.
• Features a ruggedized silicon design with integrated signal conditioning for reliable operation.
• Includes a barbed port style designed for secure tubing connections in compact assemblies.

Pressure Sensors Transducers Applications

• Process Control systems
• Altitude Control of Drones and Flying Toys
• Mobile Phones
• Virtual Reality and Gaming Equipment

Pressure Sensors Transducers Procurement Notes

Verify component authenticity through authorized distributors due to potential counterfeit risks. Confirm that the specific ordering suffix matches the required port configuration and electrical characteristics. Check for RoHS compliance status and ensure storage conditions adhere to moisture sensitivity level requirements before assembly.

Pressure Sensors Transducers Selection Notes

Select this model when a 100PSI gauge pressure range is required with an analog output interface. Ensure the system voltage supports the specified 5V excitation for optimal bridge performance. Verify mechanical compatibility with the 0.19-inch male port dimension and 4-SIP footprint against the target PCB layout constraints.

Pressure Sensors Transducers Part Context

This component belongs to the TruStability NSC family, which offers cost-effective pressure sensing solutions. It shares the same basic NSCSANN architecture but differs in port geometry and packaging specifics. The series is designed for general industrial and consumer applications requiring reliable gauge pressure monitoring.

Pressure Sensors Transducers Replacement Considerations

Direct substitutes are not explicitly confirmed in public documentation. Evaluate the NSCSANN100PGUNV for functional similarity, noting differences in port style and package orientation. Cross-reference pinouts and electrical specifications carefully before substitution.
