NSCSHNN005PDUNV

Pressure Sensors Transducers Overview

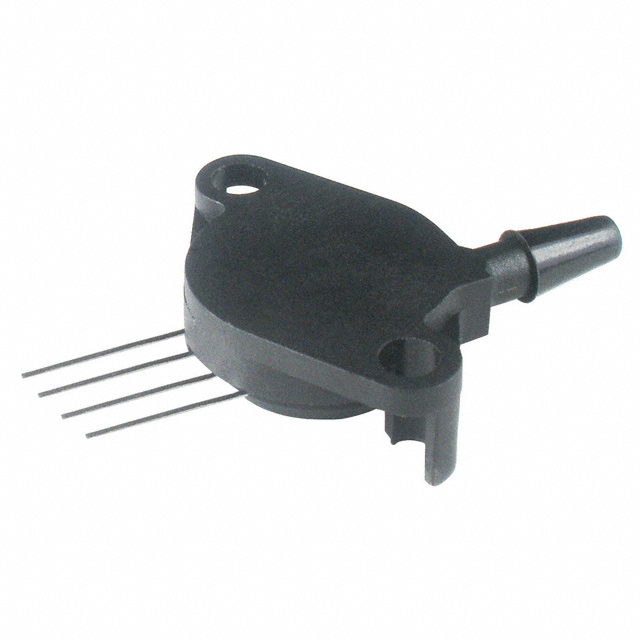

The NSCSHNN005PDUNV is a differential pressure sensor from the TruStability® NSC series, manufactured by Honeywell Sensing and Productivity Solutions. It features an unamplified, uncompensated Wheatstone bridge output with a sensitivity of 0mV to 150mV at 5V supply. The device supports a supply voltage range of 1.5V to 12V and operates within a temperature range of -40°C to 85°C. It utilizes a 4-SIP package with dual ports on the same side, designed for board mounting via PC pin termination. The sensor has a working pressure of ±5PSI (±34.47kPa) and can withstand a maximum pressure of ±20PSI (±137.9kPa).

Pressure Sensors Transducers Feature Summary

• Unamplified and uncompensated Wheatstone bridge output configuration.
• Dual barbed ports located on the same side for differential pressure measurement.
• Integrated silicon piezoresistive sensing technology.

Pressure Sensors Transducers Applications

• Board mount pressure monitoring systems.
• Low-pressure differential flow measurements.
• HVAC system air filter monitoring.

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix PDUNV against official datasheets to confirm port style and packaging details. Ensure the application circuit provides appropriate excitation voltage within the 1.5V to 12V range. Confirm that the unamplified output signal meets the input requirements of the downstream signal conditioning electronics. Check moisture sensitivity level (MSL 2) handling requirements during assembly.

Pressure Sensors Transducers Selection Notes

Select this component when an unamplified, low-cost differential pressure solution is required for board-level integration. The 4-SIP package facilitates through-hole mounting. Consider the linear output characteristic suitable for external amplification. Verify that the ±5PSI working pressure range aligns with the system's operational limits and that the 1.5V minimum supply voltage is compatible with the power budget.

Pressure Sensors Transducers Part Context

This part belongs to the TruStability® NSC series, which focuses on unamplified silicon pressure sensors. These devices are designed for applications requiring external signal processing. The series offers various pressure ranges and package options to accommodate different mechanical and electrical constraints in industrial and consumer sensing applications.

Pressure Sensors Transducers Replacement Considerations

NSCSSNN015PDUNV
