NSCSMNN001PDUNV

Pressure Sensors Transducers Overview

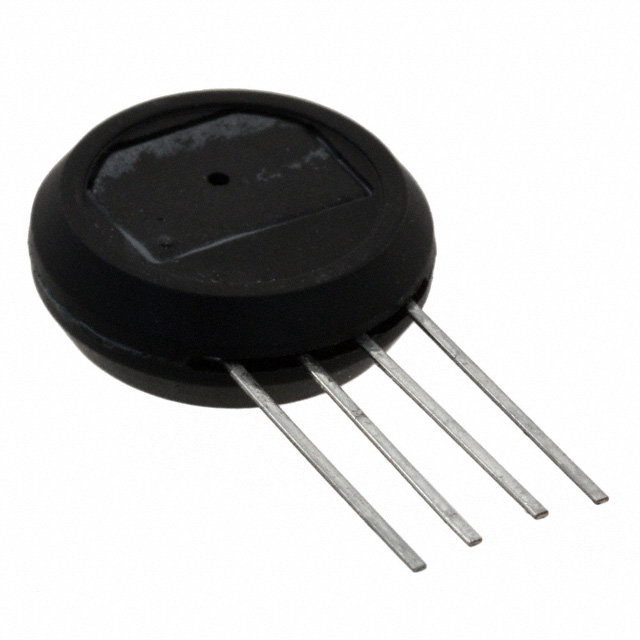

The Honeywell NSCSMNN001PDUNV is a differential pressure sensor from the TruStability NSC series. It features a working pressure range of ±1 PSI (±6.89 kPa) and a maximum pressure rating of ±10 PSI (±68.95 kPa). The device provides an analog output via a Wheatstone bridge, generating 0mV to 65mV at a 5V supply. It operates on a supply voltage between 1.5V and 12V with an accuracy of ±0.25%. The component utilizes a 4-SIP package with side ports and PC pin termination for through-hole mounting.

Pressure Sensors Transducers Feature Summary

• Differential pressure sensing capability with high accuracy
• Analog Wheatstone bridge output interface
• Robust construction for industrial environments

Pressure Sensors Transducers Applications

• Industrial process control systems
• Gas detection equipment
• Emissions monitoring devices

Pressure Sensors Transducers Procurement Notes

Verify part availability as status may vary. Confirm mechanical fit including port style and pin configuration against design requirements. Ensure supply voltage matches operational needs within the specified range. Check for obsolescence notices before finalizing procurement plans.

Pressure Sensors Transducers Selection Notes

Select this model for applications requiring precise measurement of low differential pressures around 1 PSI. The 4-SIP package suits through-hole PCB assembly. Consider the ±0.25% accuracy for critical measurement tasks. Verify temperature range compatibility with the operating environment.

Pressure Sensors Transducers Part Context

This sensor belongs to the TruStability NSC series, designed for reliable performance in demanding conditions. Honeywell Sensing and Productivity Solutions specializes in industrial safety and gas detection technologies. The NSC series offers cost-effective solutions for various sensing applications.

Pressure Sensors Transducers Replacement Considerations

NSCSANN001PDUNV and NSCSSNN015PDUNV are related models within the same series but differ in pressure ranges. Verify functional equivalence before substitution.
