NSCSMNN100PDUNV

Pressure Sensors Transducers Overview

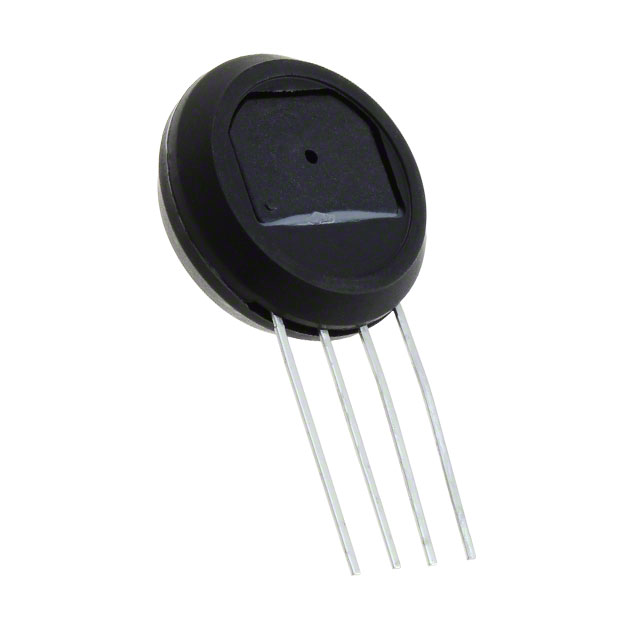

The Honeywell NSCSMNN100PDUNV is a differential pressure sensor from the TruStability NSC series. It features a ±100 PSI (±689.48 kPa) working pressure range with a maximum pressure of ±200 PSI. The device utilizes a Wheatstone bridge output, generating 0 mV to 172.5 mV at 5V excitation. It operates on a supply voltage of 1.5V to 12V and maintains an accuracy of ±0.25%. Packaged in a 4-SIP module with PC pin termination, it supports through-hole mounting for board installation within a -40°C to +85°C temperature range.

Pressure Sensors Transducers Feature Summary

• Integrated Wheatstone bridge output provides raw analog signal proportional to applied differential pressure.
• Wide supply voltage compatibility allows operation across 1.5V to 12V ranges for flexible system integration.
• Temperature compensated design ensures stable performance across extended industrial operating temperatures.

Pressure Sensors Transducers Applications

• Differential pressure monitoring in HVAC systems
• Flow measurement applications requiring low-pressure differentials
• Filtration status detection in industrial equipment

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix configuration against official Honeywell documentation to ensure correct port style and electrical characteristics. Confirm that the 4-SIP package aligns with your PCB footprint requirements. Check current availability status as component lifecycles may change. Ensure the selected variant matches the required pressure rating and output sensitivity for your specific application design.

Pressure Sensors Transducers Selection Notes

Select this component when a robust differential pressure sensing solution with wide supply voltage tolerance is required. The NSC series offers high accuracy suitable for precise flow and pressure monitoring tasks. Consider the through-hole mounting option if mechanical stability is prioritized over surface area constraints. Evaluate the analog bridge output requirement against systems capable of processing millivolt-level signals.

Pressure Sensors Transducers Part Context

This part belongs to the TruStability NSC family of board-mount pressure sensors. The series is designed for general industrial applications requiring reliable pressure measurement. The NSC line typically includes various pressure ranges and output types to support diverse engineering needs. This specific model focuses on medium-range differential pressure sensing capabilities.

Pressure Sensors Transducers Replacement Considerations

Consult official Honeywell substitution guides for verified equivalents. Cross-reference parameters such as pressure range, output type, and package dimensions before considering alternative models. Generic substitutes may not match the specific calibration or accuracy specifications of the original component.
