NSCSNBN005PDUNV

Pressure Sensors Transducers Overview

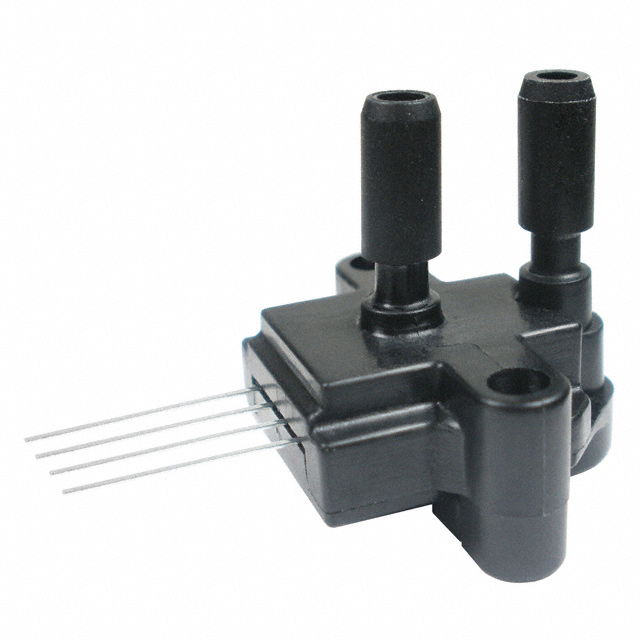

The NSCSNBN005PDUNV is a differential pressure sensor from the TruStability series, manufactured by Honeywell Sensing and Productivity Solutions. It features a working pressure of 5PSID (34.47kPa) with a maximum pressure rating of 20PSI (137.9kPa). The device utilizes a Wheatstone bridge output, providing 0mV to 75mV at 5V excitation. It operates within a temperature range of -40°C to 85°C and offers an accuracy of ±0.5%. The component is housed in a 4-SIP module package with PC pin termination for through-hole mounting.

Pressure Sensors Transducers Feature Summary

• Differential pressure sensing capability with high accuracy
• Wheatstone bridge analog output interface
• Robust 4-SIP module construction for board mounting

Pressure Sensors Transducers Applications

• Board-mounted industrial control systems
• HVAC differential pressure monitoring
• Medical device air flow measurement

Pressure Sensors Transducers Procurement Notes

Verify part authenticity against Honeywell official documentation. Confirm that the 4-SIP package and PC pin configuration match your PCB footprint requirements. Ensure supply chain sources provide valid RoHS compliance certificates. Check for any specific handling instructions regarding moisture sensitivity levels during storage and reflow processes.

Pressure Sensors Transducers Selection Notes

Select this component when a differential pressure measurement around 5PSI is required with high precision. The 4-SIP form factor suits applications needing robust through-hole integration. Consider the ±0.5% accuracy and wide operating temperature range for demanding environments. Verify voltage compatibility with the 5V excitation requirement for the bridge output.

Pressure Sensors Transducers Part Context

This sensor belongs to the TruStability family, known for silicon-based pressure sensing elements. The NSC series design emphasizes reliability and stability for long-term industrial use. It complements other Honeywell sensors offering various pressure ranges and output types for comprehensive system solutions.

Pressure Sensors Transducers Replacement Considerations

NSCSSNN005PDUNV is listed as a direct substitute. Verify mechanical fit and electrical parameter alignment before replacement.
