NSCSNNN004BGUNV

Pressure Sensors Transducers Overview

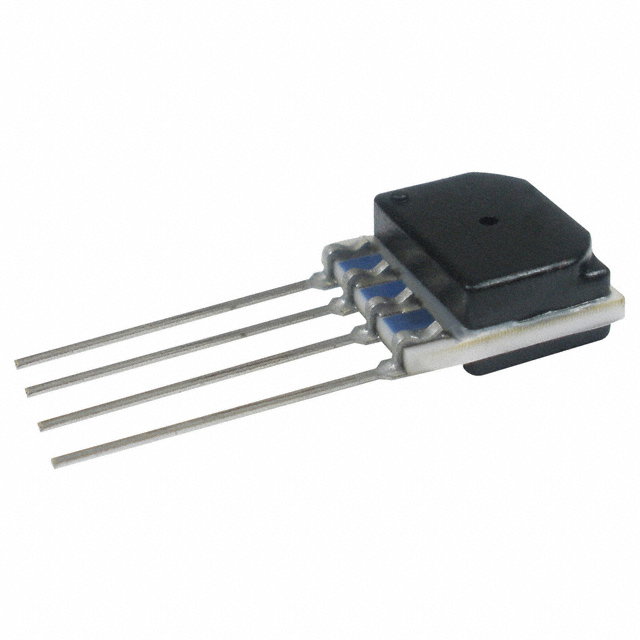

The NSCSNNN004BGUNV is a vented gauge pressure sensor from the TruStability® NSC series, manufactured by Honeywell Sensing and Productivity Solutions. It features an operating pressure of 58.02 PSI (400 kPa) and a maximum pressure rating of 116.03 PSI (800 kPa). The device utilizes a Wheatstone bridge output type, providing a signal range of 0 mV to 100 mV at a 5V supply. It operates within a voltage range of 1.5V to 12V and maintains an accuracy of ±0.25%. Designed for board mount applications via through-hole PC pins, it functions reliably in temperatures between -40°C and 85°C.

Pressure Sensors Transducers Feature Summary

• Features a Wheatstone bridge output configuration for precise pressure measurement
• Includes temperature compensation to ensure stable performance across varying thermal conditions
• Utilizes a 4-SIP module package with PC pin termination for direct board mounting

Pressure Sensors Transducers Applications

• Industrial automation systems requiring pressure monitoring
• HVAC equipment control and regulation
• Medical devices needing reliable gauge pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify part status as obsolete when sourcing this component. Confirm compatibility with existing PCB layouts due to the 4-SIP package and specific pin configuration. Ensure supply chain sources provide authentic Honeywell products to guarantee specified accuracy and temperature ranges are met during integration.

Pressure Sensors Transducers Selection Notes

Select this model for applications requiring vented gauge pressure measurement up to 58.02 PSI. Consider the wide supply voltage range of 1.5V to 12V for flexible power design. The ±0.25% accuracy suits precision industrial tasks. Evaluate the through-hole mounting requirement against available board space and assembly processes.

Pressure Sensors Transducers Part Context

This sensor belongs to the TruStability® NSC series, designed for robust industrial sensing. It complements Honeywell's portfolio of advanced pressure technologies. The NSC series focuses on reliability and accuracy for demanding environments, supporting various automation and control needs with standardized packaging options.

Pressure Sensors Transducers Replacement Considerations

As the part status is listed as obsolete, identify alternative sensors from the same TruStability® family or newer generations that match the 58.02 PSI operating pressure and 4-SIP form factor. Verify pinout compatibility to minimize redesign efforts.
