NSCSRRN004BGUNV

Pressure Sensors Transducers Overview

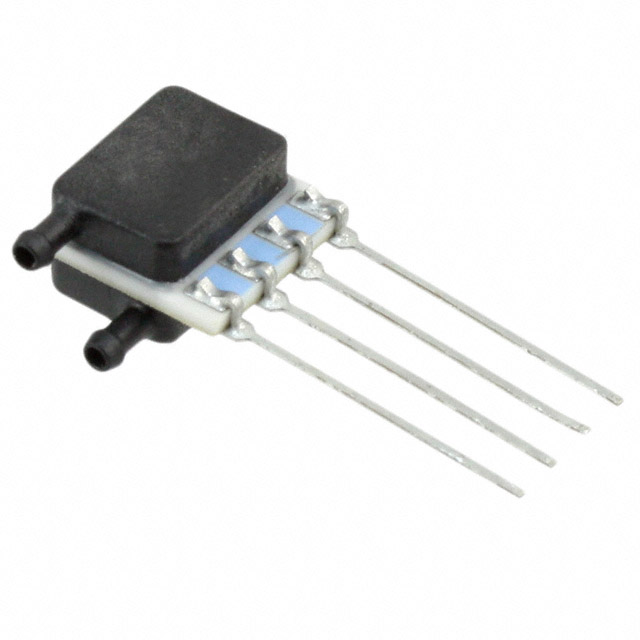

The Honeywell NSCSRRN004BGUNV is a TruStability silicon pressure sensor designed for board mount applications. It features a vented gauge pressure type with an operating pressure of 58.02 PSI (400 kPa) and a maximum pressure rating of 116.03 PSI (800 kPa). The device utilizes a Wheatstone bridge output, providing 0 mV to 100 mV at 5V excitation. It operates within a temperature range of -40°C to 85°C and offers ±0.25% accuracy. The component is housed in a 4-SIP module package with PC pin termination.

Pressure Sensors Transducers Feature Summary

• Utilizes TruStability silicon technology for reliable pressure sensing
• Features a vented gauge configuration for atmospheric reference
• Provides analog Wheatstone bridge output signal
• Designed for through-hole mounting on circuit boards

Pressure Sensors Transducers Applications

• Board mount industrial instrumentation
• HVAC system monitoring
• Medical equipment pressure measurement
• Automotive air pressure sensing

Pressure Sensors Transducers Procurement Notes

Verify the specific suffix 'BGUNV' against official Honeywell documentation to confirm port style and termination details. Confirm that the part status is acceptable for long-term production, as some variants may be obsolete. Ensure the required operating pressure range aligns with the 58.02 PSI specification. Check for any recent packaging changes or moisture sensitivity level updates in the latest datasheet revision before procurement.

Pressure Sensors Transducers Selection Notes

Select this component when a vented gauge pressure sensor with a 400 kPa range is required. Consider the 4-SIP package and PC pin termination for through-hole assembly processes. Evaluate the ±0.25% accuracy and -40°C to 85°C temperature range against application requirements. Compare against other TruStability series parts if different pressure ranges or port styles are needed.

Pressure Sensors Transducers Part Context

This part belongs to the Honeywell TruStability NSC series of silicon pressure sensors. These sensors are known for high reliability and stability. The NSC series typically includes various pressure ranges and port configurations. This specific model represents a vented gauge variant suitable for general-purpose pressure monitoring applications requiring moderate accuracy.

Pressure Sensors Transducers Replacement Considerations

Check Honeywell's official substitution guide for direct replacements. Verify compatibility of pinout and electrical characteristics if considering alternative manufacturers. Ensure the replacement part meets the same pressure and temperature specifications.
