NSCSSNN030PAUNV

Pressure Sensors Transducers Overview

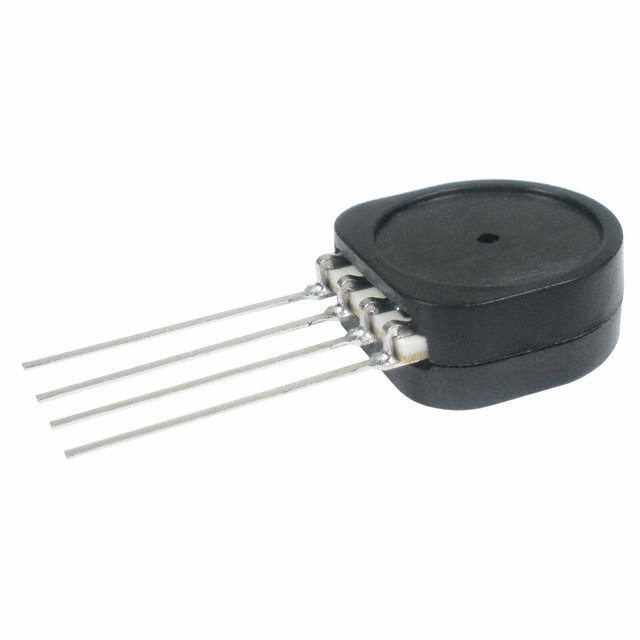

The NSCSSNN030PAUNV is a board-mount absolute pressure sensor from Honeywell’s TruStability series. It features a manifold port and SIP-4 through-hole package. The device measures 0 to 30 psi with 0.25% accuracy. Output is analog, ranging from 0 mV to 74 mV at 5 V supply. Operating voltage spans 1.8 V to 12 V. Current consumption is 1.5 mA. Temperature range is -40°C to +85°C.

Pressure Sensors Transducers Feature Summary

• Utilizes piezoresistive sensing technology for precise absolute pressure measurement
• Integrated ASIC signal conditioning ensures stable analog output
• Manifold port design facilitates direct connection to fluid systems

Pressure Sensors Transducers Applications

• Industrial automation pressure monitoring
• HVAC system diagnostics
• Medical equipment gas flow control

Pressure Sensors Transducers Procurement Notes

Verify the specific pressure rating and output voltage configuration against the official datasheet before integration. Confirm that the SIP-4 through-hole mounting style matches the target PCB layout requirements. Ensure operating temperature limits align with the environmental conditions of the intended application to maintain specified accuracy levels.

Pressure Sensors Transducers Selection Notes

Select this component when an absolute pressure reading within the 0-30 psi range is required. The analog output interface suits systems needing direct voltage processing. Consider the 1.8-12 V wide supply range for flexible power design. The manifold port option simplifies plumbing compared to single-port alternatives in compact assemblies.

Pressure Sensors Transducers Part Context

This part belongs to the TSC/NSC series of board mount pressure sensors. It shares the TruStability branding with other models offering different pressure ranges. The SIP-4 package allows for standard through-hole assembly processes. Honeywell Sensing and Productivity Solutions provides this line for general industrial and commercial sensing needs.

Pressure Sensors Transducers Replacement Considerations

Consult the official datasheet for alternative part numbers within the same series that offer different pressure ratings or output configurations. Verify pinout compatibility and electrical specifications before substituting with similar board-mount pressure sensors from other manufacturers.
