NSVBAV70DXV6T5G

Q: What is the pin configuration for the common cathode?

The device integrates two diodes sharing a common cathode terminal within the six-pin SOT-563 package.

Q: Is this component suitable for automotive use?

Yes, the NSVBAV70DXV6T5G is explicitly qualified for automotive applications.

$0.13

Description：DIODE ARRAY GP 100V 200MA SOT563
Series：-

SKU:f9d2735d9ec7 Category: Diode Arrays Brand: onsemi

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE ARRAY GP 100V 200MA SOT563
Series：-
Mfr：onsemi
Package：Tape & Reel (TR)
Diode Configuration：1 Pair Common Cathode
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io) (per Diode)：200mA (DC)
Voltage - Forward (Vf) (Max) @ If：1.25 V @ 150 mA
Speed：Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)：6 ns
Current - Reverse Leakage @ Vr：1 µA @ 100 V
Operating Temperature - Junction：-55°C ~ 150°C
Mounting Type：Surface Mount
Package / Case：SOT-563, SOT-666
Supplier Device Package：SOT-563
Grade：Automotive
Qualification：AEC-Q101

Download product information

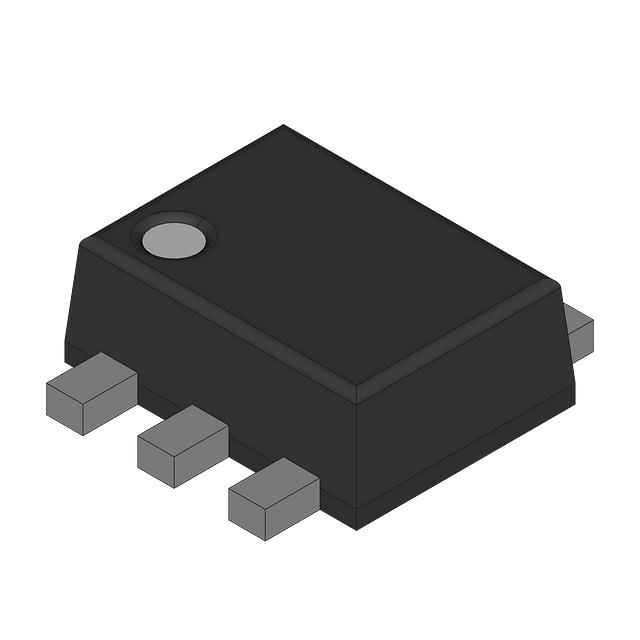

NSVBAV70DXV6T5G

Overview

The NSVBAV70DXV6T5G is a monolithic dual switching diode array manufactured by onsemi, featuring a common cathode configuration. It is designed for surface-mount applications in the SOT-563 package. The device supports a maximum repetitive peak reverse voltage of 100 V and a continuous forward current of 200 mA. With a typical reverse recovery time of 6 ns, it is optimized for high-speed switching operations. The component is qualified for automotive applications, ensuring reliability in demanding environments.

Feature Summary

Monolithic dual switching diode structure with common cathode connection
High-speed switching capability with 6 ns reverse recovery time
Automotive-grade qualification for enhanced reliability
Compact SOT-563 surface-mount package design

Applications

Automotive electronic circuits requiring fast switching
General-purpose rectification in low-power systems
Signal processing applications needing rapid response
Protection circuits in automotive infotainment or control modules

Procurement Notes

Verify the exact ordering suffix and package variant when sourcing to ensure compatibility with your PCB footprint. Confirm automotive qualification status if required for your specific application environment. Check the latest datasheet revision for any updates to electrical characteristics or recommended soldering profiles before finalizing the design.

Selection Notes

Select this component when a compact dual diode solution with fast recovery is needed. The 100 V rating suits low-voltage logic and signal lines. Consider the 200 mA current limit for load requirements. The common cathode topology simplifies circuit layout compared to discrete components. Ensure thermal management aligns with the SOT-563 package capabilities.

Part Context

This part belongs to onsemi's lineup of small-signal switching diodes. It complements other SOT-563 devices like the EMX1DXV6T5G transistor series. The product line focuses on miniaturization and performance for modern electronics. It serves as a building block for complex integrated circuits and modular designs.
