NXH450N65L4Q2F2S1G

Overview

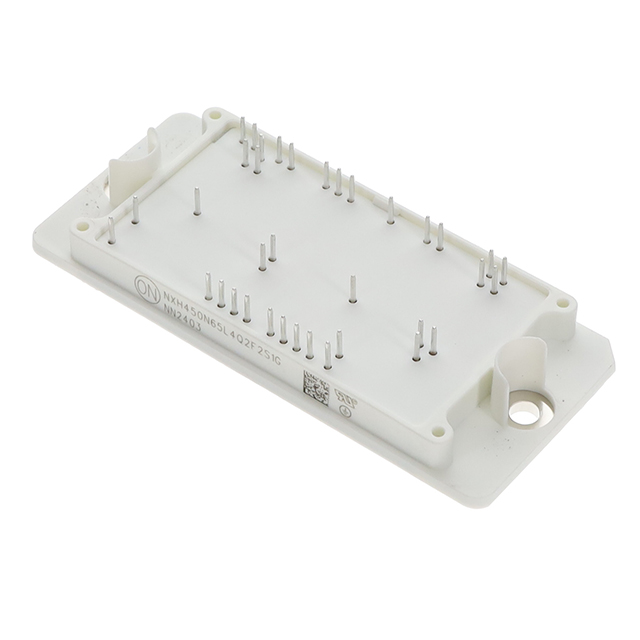

The NXH450N65L4Q2F2S1G is a power module containing an I-type neutral point clamped three-level inverter. It integrates field stop trench IGBTs and fast recovery diodes (FRDs) to achieve high efficiency and superior reliability. The module features a low inductive layout, solderable pins, and an integrated thermistor for thermal monitoring. It operates with a maximum junction temperature of 175°C and includes isolation test voltage of 4000 Vrms. The device is lead-free, halogen-free, and RoHS compliant.

Feature Summary

• Neutral Point Clamped Three-Level Inverter Module
• 650 V Field Stop 4 IGBTs
• Low Inductive Layout
• Solderable Pins
• Thermistor

Applications

• Solar Inverters
• Uninterruptable Power Supplies Systems

Procurement Notes

Verify the specific ordering suffixes against the manufacturer's datasheet to ensure correct package type and compliance status. Confirm assembly and test site codes match project requirements. Check for updated revision numbers before finalizing procurement specifications.

Selection Notes

Select this module for applications requiring high-efficiency three-level inversion. Ensure the cooling system supports the specified thermal resistance values. Verify that the gate drive circuitry matches the recommended operating ranges for the integrated IGBTs and FRDs.

Part Context

This component belongs to onsemi's Q2PACK family of power modules. It is designed for high-power density applications where reduced switching losses and improved thermal performance are critical. The module integrates multiple semiconductor dies into a single compact package.

Replacement Considerations

NXH600N65L4Q2F2SG is listed as a parameter equivalent substitute by distributors.
