NXH75M65L4Q1PTG

Overview

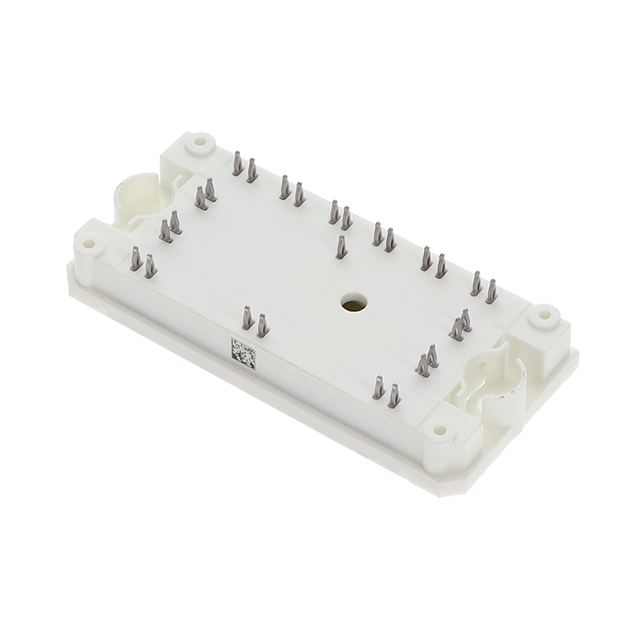

The NXH75M65L4Q1PTG is a silicon IGBT module from onsemi, designed for high-power industrial applications. It features a 650V collector-emitter voltage rating and a continuous collector current of 75A at 25°C. The device utilizes Q1PACK technology with press-fit pins for secure mounting. Key electrical parameters include a typical collector-emitter saturation voltage of 1.85V and a maximum power dissipation of 6kW. The module operates within a junction temperature range of -40°C to +175°C.

Feature Summary

• Utilizes Q1PACK technology with press-fit pin connections for robust mechanical stability and simplified assembly.
• Features high thermal performance capabilities suitable for demanding industrial power conversion environments.
• Incorporates silicon IGBT technology optimized for efficient switching and conduction in medium to high-power circuits.

Applications

• Industrial motor drives and servo systems
• Uninterruptible power supplies (UPS)
• Induction heating equipment

Procurement Notes

Verify the specific suffix PTG against official datasheets to confirm package type and terminal configuration. Ensure compatibility with existing heatsinking solutions due to the press-fit mounting requirement. Check for recent Product Change Notifications regarding material or process updates before finalizing procurement plans.

Selection Notes

Select this module when a 650V rating and 75A current capacity are required in a compact Q1PACK form factor. Consider the press-fit termination method for vibration resistance compared to soldered alternatives. Evaluate thermal management requirements based on the 6kW power dissipation rating under expected operating conditions.

Part Context

This component belongs to the NXH75M65L4Q1 series of IGBT modules. It shares the same core electrical specifications as variants like NXH75M65L4Q1SG but differs in packaging and termination style. The Q1PACK design distinguishes it from discrete TO-247 packages or other modular formats within the manufacturer's portfolio.

Replacement Considerations

Direct substitutes may include NXH75M65L4Q1SG if the pin configuration allows adaptation. Verify that any replacement maintains the 650V/75A ratings and compatible thermal interface dimensions. Cross-reference datasheets for exact pinout and mounting hole patterns to ensure mechanical fit.
