O 0,032768-JSO15B1TR-F-1V3-T1-RR-D

Oscillators Overview

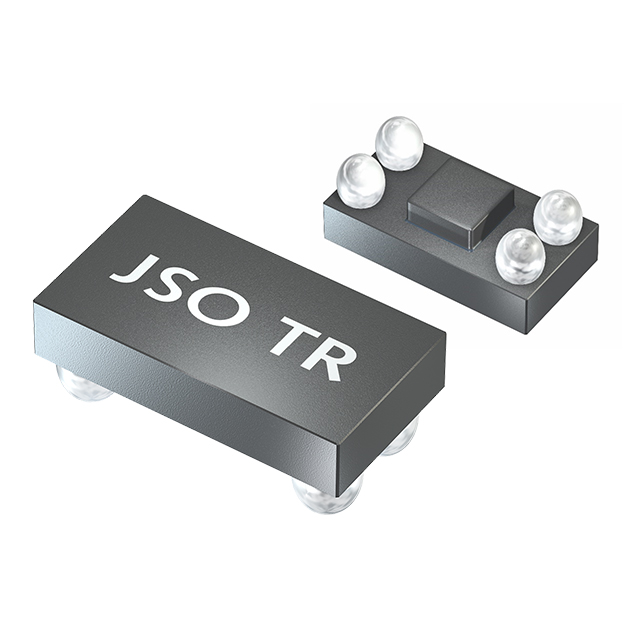

The O 0,032768-JSO15B1TR-F-1V3-T1-RR-D is a MEMS TCXO oscillator manufactured by Jauch Quartz. It operates at a nominal frequency of 32.768 kHz with an LVCMOS output type. The device supports a supply voltage range of 1.5 V to 3.63 V and features a frequency stability of ±5 ppm. It is housed in a compact 4-UFBGA package.

Oscillators Feature Summary

• Utilizes MEMS technology for enhanced reliability compared to traditional quartz crystals
• Provides temperature-compensated frequency stability to maintain accuracy across operating conditions
• Features low power consumption suitable for battery-operated portable devices

Oscillators Applications

• Real-time clock circuits in mobile devices
• GPS receiver timing references
• Wearable health monitoring equipment
• IoT sensor nodes requiring precise timekeeping

Oscillators Procurement Notes

Verify the specific suffix codes (F, T1, RR) against the manufacturer's latest datasheet to ensure correct frequency tolerance and packaging configuration. Confirm that the 4-UFBGA footprint matches your PCB design constraints. Check RoHS compliance status if required for your assembly process.

Oscillators Selection Notes

Select this component when a small form factor and high stability are required for low-frequency timing applications. Consider the ±5 ppm stability requirement against your system's total allowable error budget. Ensure the LVCMOS output voltage levels are compatible with the receiving logic inputs of your microcontroller or processor.

Oscillators Part Context

This part belongs to Jauch Quartz's JSO series of MEMS oscillators. It serves as a modern alternative to traditional quartz crystal oscillators, offering improved shock resistance and smaller physical dimensions while maintaining comparable frequency stability for real-time clock and communication applications.

Oscillators Replacement Considerations

Direct replacements may include other MEMS TCXOs from Jauch with similar pinouts and electrical characteristics. Verify compatibility with any existing firmware that might rely on specific startup times or signal integrity profiles of the original component.
