OBERDLLTNY-156.250000

Oscillators Overview

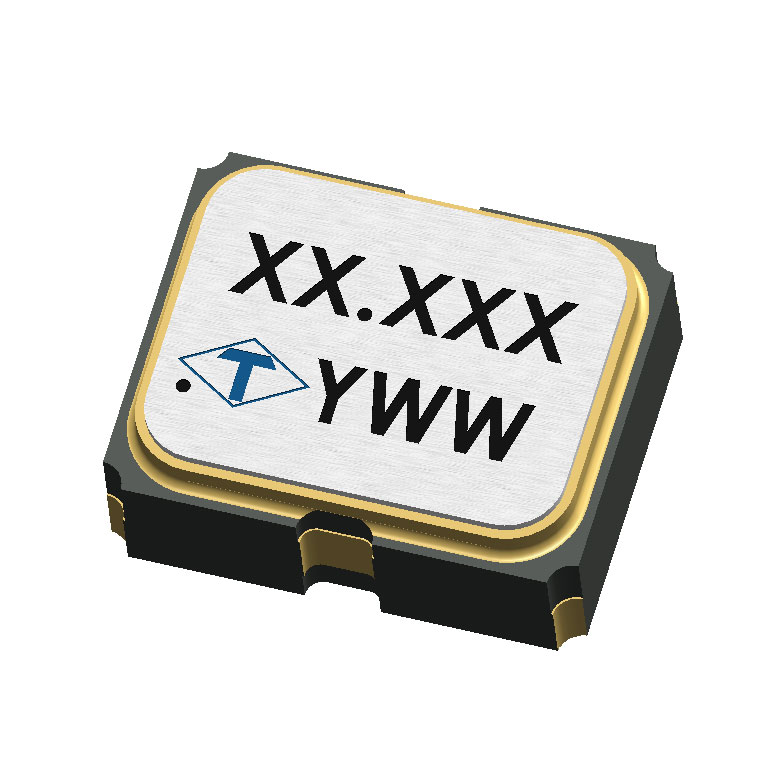

The OBERDLLTNY-156.250000 is a surface-mount PECL crystal oscillator manufactured by Taitien. It operates at a nominal frequency of 156.25 MHz with a standard supply voltage of 3.3 V, ranging from 3.135 V to 3.465 V. The device features complementary outputs and supports tri-state enable/disable functions. It utilizes a ceramic SMD package measuring 7.5 mm x 5.0 mm x 1.9 mm with six pads. The unit exhibits low phase jitter, typically up to 0.5 picoseconds, and offers tight duty cycle symmetry between 45% and 55%. Operating temperatures range from -10 °C to 60 °C.

Oscillators Feature Summary

• Complementary output configuration for signal integrity
• Low phase jitter performance suitable for high-speed clocking
• Tri-state enable and disable functionality for power management
• Standard ceramic surface-mount packaging

Oscillators Applications

• High-speed digital communication systems
• Data acquisition equipment clocking
• Test and measurement instrumentation
• Telecommunications network infrastructure

Oscillators Procurement Notes

Verify the specific suffix against official Taitien documentation to confirm exact frequency tolerance and temperature range specifications. Ensure the ordering part number matches the required RoHS compliance status and tape-and-reel packing quantity. Cross-reference the pinout diagram with the target PCB layout to confirm compatibility with the six-pad ceramic package dimensions.

Oscillators Selection Notes

Select this component when a precise 156.25 MHz PECL clock source is required for synchronous data transmission. Consider the complementary output capability if differential signaling or reduced electromagnetic interference is necessary. Evaluate the operating temperature range against the environmental conditions of the final assembly to ensure reliable performance within the specified thermal limits.

Oscillators Part Context

This oscillator belongs to Taitien's OT series of precision frequency control products. The manufacturer specializes in quartz crystals and oscillators, providing solutions for telecommunications and industrial applications. This specific model represents a standard surface-mount option designed for integration into compact electronic circuits requiring stable timing references.

Oscillators Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify that any alternative maintains identical PECL output levels, package footprint, and electrical characteristics to ensure circuit compatibility without redesign.
