OJJMDLVTNF-400.000000

Oscillators Overview

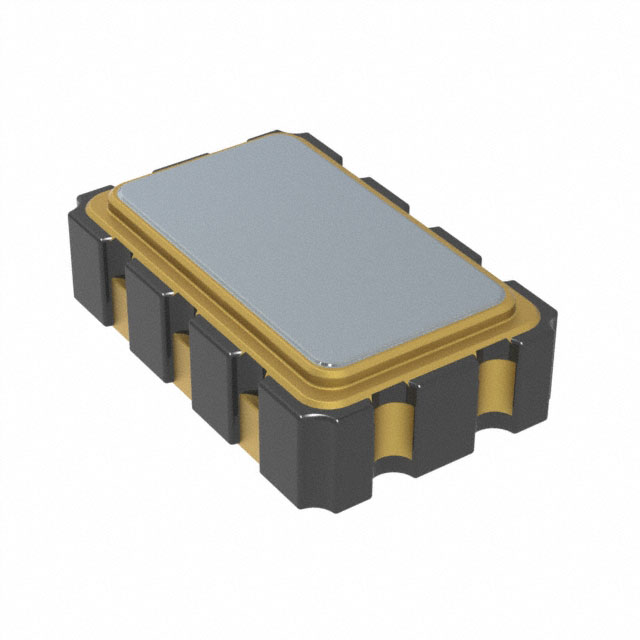

The OJJMDLVTNF-400.000000 is a 400 MHz standard XO oscillator manufactured by Taitien, utilizing LVDS output technology. It operates on a 2.5V supply voltage and features an enable/disable function for power management. The device is housed in an 8-SMD, no-lead surface-mount package. It provides a frequency stability of ±25ppm across the operating temperature range of -40°C to +85°C. The component is RoHS compliant and designed for high-speed digital applications requiring precise timing signals.

Oscillators Feature Summary

• LVDS output interface for low noise and high-speed data transmission
• Enable/disable control functionality for system power optimization
• Industrial-grade temperature stability with ±25ppm accuracy
• RoHS compliant lead-free construction

Oscillators Applications

• High-speed serial communication interfaces
• Data acquisition systems requiring precise clocking
• Network infrastructure equipment
• Test and measurement instruments

Oscillators Procurement Notes

Verify the specific suffix and tolerance requirements against the target design specifications. Confirm that the 8-SMD no-lead package dimensions align with the PCB footprint constraints. Ensure the 2.5V supply voltage matches the system power rails. Check for RoHS compliance documentation if required by regulatory standards. Validate the enable/disable pin configuration with the host controller logic levels.

Oscillators Selection Notes

Select this component when a 400 MHz clock source with LVDS outputs is required. Consider the ±25ppm stability for industrial environments ranging from -40°C to +85°C. Evaluate the 2.5V supply requirement against available power planes. The enable/disable feature supports dynamic power management strategies. Compare physical size and pinout compatibility with existing designs.

Oscillators Part Context

This oscillator belongs to Taitien's series of surface-mount crystal oscillators. It is part of a family offering various frequencies and output types. The manufacturer specializes in frequency control products including quartz crystals and oscillers. This specific model targets applications needing high-frequency stability and low jitter performance in compact packages.

Oscillators Replacement Considerations

Direct substitutes may include other 400 MHz LVDS oscillators from Taitien or competitors with identical pinouts and electrical characteristics. Verify equivalent stability, voltage, and package dimensions before substitution.

Oscillators FAQ

What is the output type of the OJJMDLVTNF-400.000000?

The output type is LVDS (Low Voltage Differential Signaling).

Does this oscillator support power control?

Yes, it includes an enable/disable function for controlling the output state.
