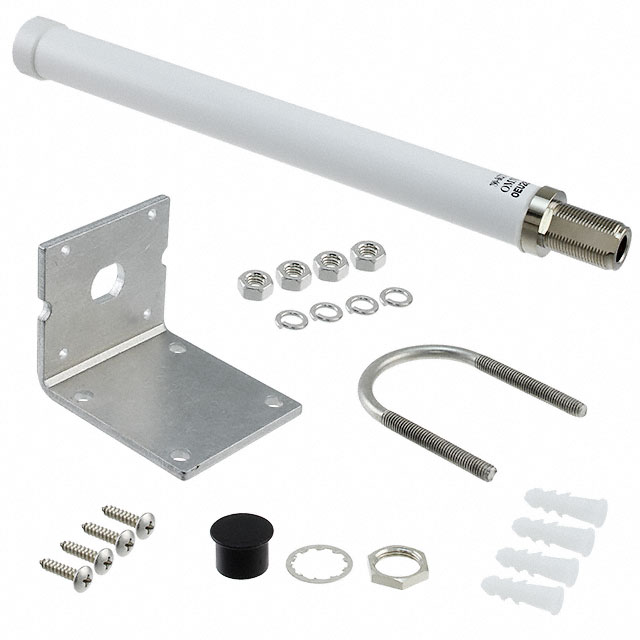

OSCAR41/X/NTYPEF/S/S/29

$46.77

Description：RF ANT 826MHZ/1.95GHZ WHIP STR
Series：OSCAR 41
Mfr：Siretta Ltd
Package：Bulk

SKU:11f4822b7a10 Category: RF Antennas Brand: Siretta Ltd

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 826MHZ/1.95GHZ WHIP STR
Series：OSCAR 41
Mfr：Siretta Ltd
Package：Bulk
RF Family/Standard：Bluetooth, Cellular, WiFi
Frequency Group：UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：826MHz, 1.95GHz
Frequency Range：790MHz ~ 862MHz, 1.71GHz ~ 2.18GHz
Antenna Type：Whip, Straight
Number of Bands：2
VSWR：-
Return Loss：-
Gain：3dBi
Features：-
Termination：N Type Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Bracket Mount
Height (Max)：9.331" (237.00mm)
Applications：2G, 3G, 4G, Bluetooth, WLAN, Wi-Fi, Zigbee™
Power - Max：-

Download product information

OSCAR41/X/NTYPEF/S/S/29

Overview

The Siretta OSCAR41/X/NTYPEF/S/S/29 is an omnidirectional RF antenna designed for multi-band wireless applications. It operates within a frequency range of 790 MHz to 2.7 GHz, covering 2G, 3G, 4G, Bluetooth, WLAN, Wi-Fi, and Zigbee protocols. The unit features a 3 dBi gain, 50 Ohm impedance, and N-Type Female connector. It supports up to 10 W power handling with a VSWR of 3. The antenna is rated for vertical polarization and includes a 5-meter cable length.

Feature Summary

Supports multiple wireless standards including cellular, Wi-Fi, and IoT protocols
Omnidirectional radiation pattern for broad coverage
Integrated 5-meter cable with N-Type Female connector

Applications

Wireless network modem connections
2G, 3G, and 4G cellular communication systems
WLAN and Wi-Fi infrastructure
Bluetooth and Zigbee IoT deployments

Procurement Notes

Verify the specific datasheet version to confirm mechanical dimensions and environmental ratings. Ensure the N-Type Female connector matches the receiving equipment interface. Confirm that the 5-meter cable length meets installation requirements. Check RoHS compliance documentation for regulatory adherence in target markets.

Selection Notes

Select this model when a compact omnidirectional solution is required for mixed protocol environments. The integrated cable simplifies installation compared to discrete antenna components. Verify that the 3 dBi gain and 10 W power rating align with system link budget calculations. Consider the operating temperature range if deployed in extreme climates.

Part Context

This component belongs to the OSCAR series of antennas from Siretta Ltd. The series focuses on versatile, multi-band solutions suitable for various wireless technologies. The part number indicates specific connector type, cable length, and color coding attributes within the product line.
