OVETGCKTNF-66.666700

Oscillators Overview

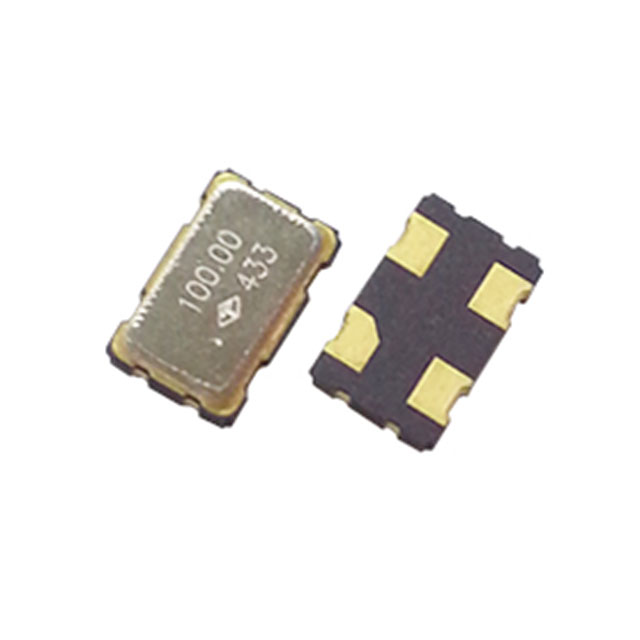

The OVETGCKTNF-66.666700 is a standard CMOS crystal oscillator manufactured by Taitien Electronics. It operates at a nominal frequency of 66.6667 MHz with a typical frequency stability of ±50 ppm. The device supports an operating voltage range of 2.8V to 3.3V and features enable/disable functionality for power management. It utilizes a surface-mount package configuration, specifically a 4-SMD no-lead footprint, designed for automated assembly processes.

Oscillators Feature Summary

• CMOS output interface compatible with standard digital logic circuits
• Integrated enable and disable control pin for active power management
• Surface-mount construction optimized for high-volume PCB assembly

Oscillators Applications

• Digital communication systems requiring precise clock synchronization
• Data acquisition equipment needing stable timing references
• Embedded processing modules utilizing CMOS-compatible clock inputs

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer's current ordering information to ensure correct voltage and stability specifications. Confirm RoHS compliance status and lead times directly with authorized distributors prior to purchase. Ensure the selected variant matches the required enable/disable functionality and package dimensions for your design.

Oscillators Selection Notes

Select this component when a standard CMOS output is required alongside low-voltage operation between 2.8V and 3.3V. Consider the ±50 ppm stability specification against system timing requirements. Evaluate the 4-SMD no-lead package size for board space constraints compared to through-hole alternatives.

Oscillators Part Context

Taitien Electronics specializes in quartz frequency control products, including oscillators and crystals. This model belongs to their standard oscillator lineup, distinct from their oven-controlled (OCXO) or temperature-compensated (TCXO) series. The company provides these components for industrial and commercial electronic applications requiring reliable timing signals.

Oscillators Replacement Considerations

Cross-reference part numbers with other manufacturers offering 66.6667 MHz CMOS oscillators in 4-SMD packages. Verify that substitute components match the electrical characteristics, particularly the supply voltage range and enable pin logic levels, before integration.
