OXETDCJANF-24.000000

Oscillators Overview

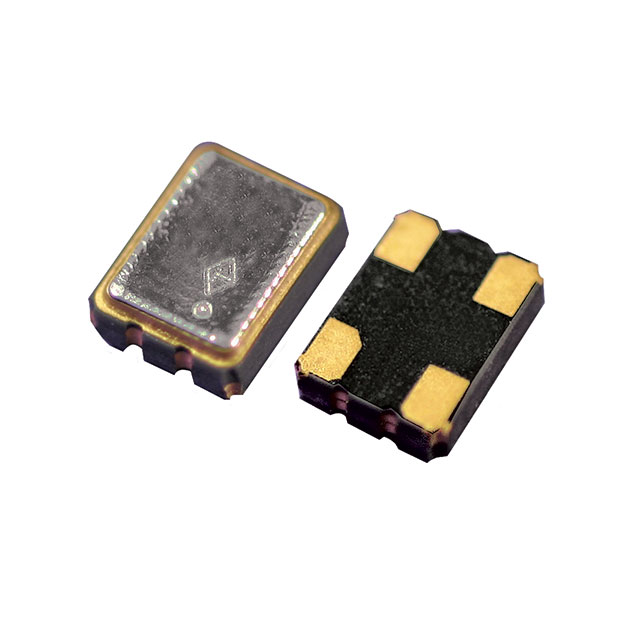

OXETDCJANF-24.000000 is a Taitien XO (Standard) CMOS crystal oscillator operating at 24 MHz. It features a 3.3V supply voltage and supports Enable/Disable functionality. The component utilizes a 4-SMD, No Lead surface-mount package with dimensions of 3.2mm x 2.5mm. It offers frequency stability of ±50ppm and operates within a temperature range of -20°C to 70°C. Maximum supply current is 15mA, with disabled current at 10µA.

Oscillators Feature Summary

• Supports active enable and disable control for power management
• Provides standard CMOS output signal compatibility
• Utilizes compact 4-SMD no-lead surface mount packaging

Oscillators Applications

• General clock signal generation in embedded systems
• Timing reference for digital logic circuits
• Consumer electronics requiring low-power oscillators

Oscillators Procurement Notes

Verify the specific suffix and frequency code against official Taitien documentation to ensure exact match. Confirm that the required operating temperature range and supply voltage align with system specifications. Check RoHS compliance status if environmental regulations apply to the final assembly.

Oscillators Selection Notes

Select this model when a 24 MHz timing source with enable/disable capability is required. Ensure the design accommodates the 3.3V supply rail and 4-SMD footprint. Consider the ±50ppm stability requirement relative to system clock tolerance needs.

Oscillators Part Context

This component belongs to Taitien's OX series of ultra-low power crystal oscillators. The series typically includes variants with different frequencies and packages, designed for portable devices where space and power consumption are critical constraints.

Oscillators Replacement Considerations

Cross-reference with other Taitien models in the OX or OY series for alternative frequencies or packages. Verify pinout compatibility before substituting with similar components from other manufacturers.
