P-3000S-102A-10

Pressure Sensors Transducers Overview

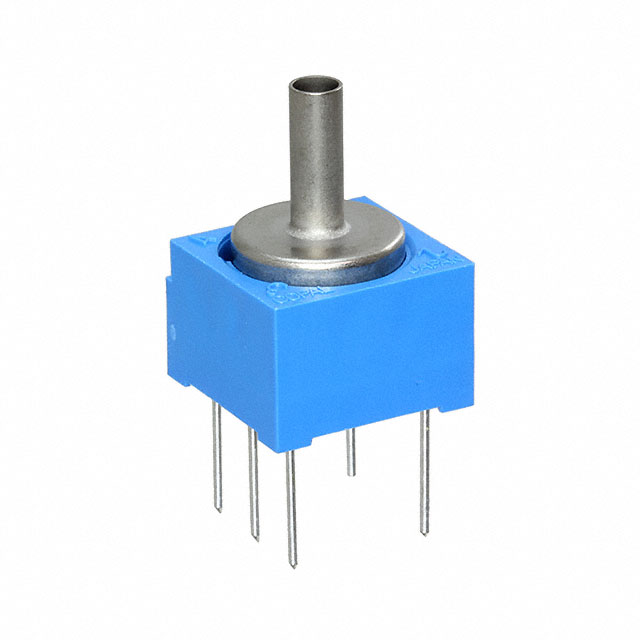

The P-3000S-102A-10 is a board-mount pressure sensor manufactured by Nidec Components Corporation. It features an absolute pressure type with an operating pressure of 14.23 PSI (98.1 kPa). The device provides an analog voltage output ranging from 0 mV to 80 mV. It achieves an accuracy of ±0.1% and is designed for use with non-corrosive gases.

Pressure Sensors Transducers Feature Summary

• Absolute pressure measurement capability
• Analog voltage output interface
• High precision accuracy rating

Pressure Sensors Transducers Applications

• Non-corrosive gas pressure monitoring
• Board-mounted industrial sensing
• Low-pressure system regulation

Pressure Sensors Transducers Procurement Notes

Verify the specific package dimensions and pinout configuration against your PCB layout before ordering. Confirm that the supply voltage range matches your system requirements. Ensure the operating environment remains within the specified limits for non-corrosive gases to maintain the stated accuracy and longevity of the sensor element.

Pressure Sensors Transducers Selection Notes

Select this model when absolute pressure reading is required rather than gauge or differential measurements. The analog voltage output simplifies integration with standard ADCs. Consider the ±0.1% accuracy requirement against your system tolerance needs. Verify thermal error specifications if significant temperature variations are expected in the application environment.

Pressure Sensors Transducers Part Context

This component belongs to the P-3000S series of board-mount pressure sensors. The series offers various pressure ranges and output types. The 102A-10 variant specifically targets low-pressure absolute applications. It complements other variants in the family that may offer different pressure ratings or output signal formats for diverse system designs.

Pressure Sensors Transducers Replacement Considerations

Check the datasheet for compatible alternatives within the P-3000S series that match the 98.1 kPa range. Verify pin compatibility and output voltage scaling for direct substitution. Consult official Nidec Components documentation for updated part numbers or revised versions of this sensor.
