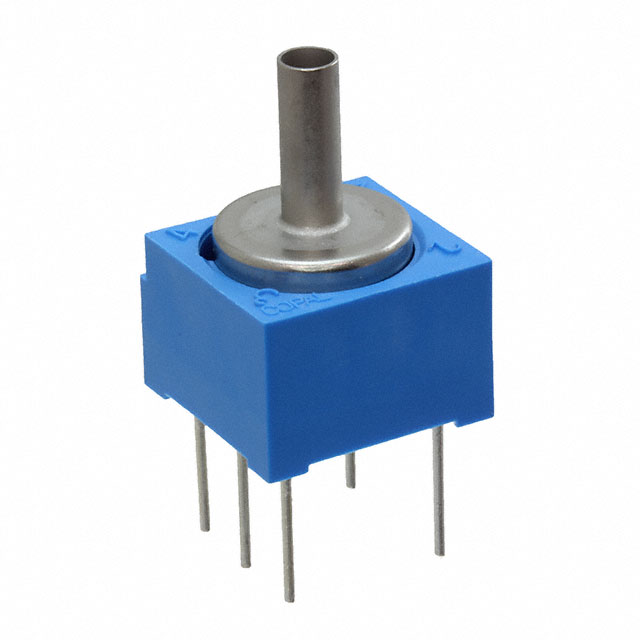

P-3000S-502G-04 is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Nidec Components Corporation. Its product description is SENSOR 71.07PSIG 0.1V. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for P-3000S-502G-04
- Description：SENSOR 71.07PSIG 0.1V
- Series：P-3000S
- Mfr：Nidec Components Corporation
- Package：Bulk
- Applications：Board Mount
- Pressure Type：Gauge
- Operating Pressure：71.07PSI (490kPa)
- Output Type：Analog Voltage
- Output：0 mV ~ 100 mV
- Accuracy：±0.04%
- Voltage - Supply：-
- Port Size：-
- Port Style：Barbless
- Features：Temperature Compensated
- Termination Style：PC Pin
- Maximum Pressure：142.28PSI (981kPa)
- Operating Temperature：-20°C ~ 100°C
- Mounting Type：Through Hole
- Package / Case：5-DIP Module, Top Port
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for P-3000S-502G-04
Pressure Sensors Transducers Overview
The P-3000S-502G-04 is a pressure sensor manufactured by Nidec Components Corporation. It features a gauge pressure range of 71.07 PSI (490 kPa). The device provides an analog voltage output ranging from 0 mV to 100 mV. It is housed in a 5-DIP module package with a top port configuration.
Pressure Sensors Transducers Feature Summary
- Provides analog voltage signal output for pressure measurement
- Designed as a compact 5-DIP module for integration
- Features a top port configuration for fluid connection
Pressure Sensors Transducers Applications
- Industrial equipment monitoring
- HVAC system pressure sensing
- Fluid control systems
Pressure Sensors Transducers Procurement Notes
Verify the specific part number P-3000S-502G-04 against official Nidec documentation to confirm the 71.07 PSI gauge range and 5-DIP package type. Ensure the application requires a top port interface and analog voltage output compatible with the 0-100mV specification before procurement.
Pressure Sensors Transducers Selection Notes
Select this component when a gauge pressure sensor with a 490 kPa range is required. The 5-DIP form factor suits applications needing a compact, through-hole mounting solution. Confirm that the system can accommodate the top port orientation and utilizes the specified analog voltage output interface.
Pressure Sensors Transducers Part Context
This model belongs to the P-3000S series of pressure transducers from Nidec Components. The series includes various configurations for gauge and differential pressure measurements. This specific variant is optimized for applications requiring a moderate pressure range with a standard DIP footprint.
Pressure Sensors Transducers Replacement Considerations
Cross-reference with other P-3000S variants such as P-3000S-502G-02 or P-3000S-702G-04 if different pressure ranges are needed. Verify pinout compatibility and package dimensions when substituting with similar gauge pressure sensors from other manufacturers.
