P-8505-102G

Pressure Sensors Transducers Overview

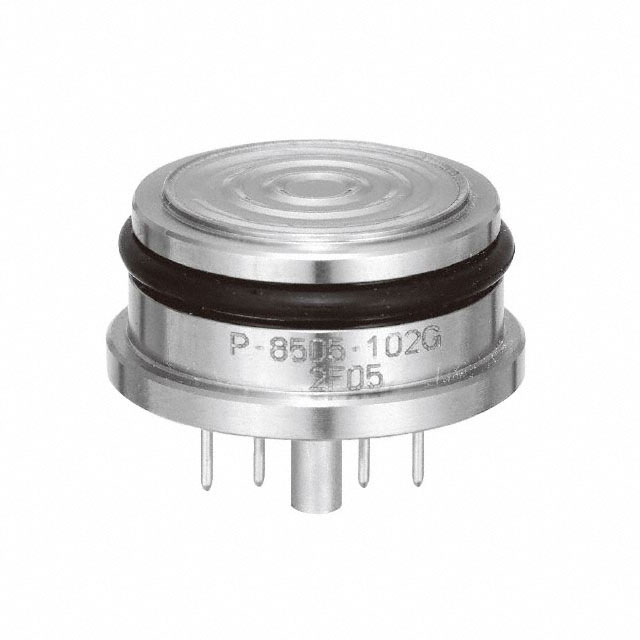

The P-8505-102G is a pressure transducer manufactured by Nidec Components Corporation, designed for industrial automation and control applications. It features an integrated amplifier and provides an analog current output ranging from 4mA to 20mA. The device operates on a 24V supply voltage and measures gauge pressure with a working pressure of 14.5PSI (100kPa) and a maximum pressure of 29.01PSI (200kPa). It utilizes an M5 female threaded port for connection and employs an M12 connector style for electrical termination. The unit is housed in a cylindrical package and includes temperature compensation to ensure stable performance across its operating temperature range of -20°C to 70°C.

Pressure Sensors Transducers Feature Summary

• Integrated amplifier for signal conditioning within the pressure transducer assembly
• Temperature compensated design to maintain accuracy across varying thermal conditions
• Cylindrical housing construction suitable for compact industrial installations

Pressure Sensors Transducers Applications

• Industrial automation systems
• Process control monitoring
• Fluid pressure measurement

Pressure Sensors Transducers Procurement Notes

Verify the specific model suffix against official Nidec documentation to confirm exact pressure ratings and interface configurations. Ensure compatibility with existing M5 threaded ports and M12 connectors during system integration. Confirm RoHS3 compliance requirements for your specific manufacturing region before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this component when a robust cylindrical pressure transducer with built-in amplification is required for industrial environments. Consider the 4mA to 20mA output standard for easy integration into existing PLC or SCADA systems. Evaluate the M5 thread size and M12 connector type against available panel space and wiring infrastructure constraints.

Pressure Sensors Transducers Part Context

This part belongs to the PA-858 series of pressure transducers produced by Nidec Components Corporation. The series is characterized by rugged cylindrical designs intended for demanding industrial settings. These sensors are engineered to provide reliable gauge pressure measurements with integrated signal processing capabilities.

Pressure Sensors Transducers Replacement Considerations

Consult official Nidec Component substitution lists for verified alternative part numbers. Cross-reference technical specifications including pressure ranges, output signals, and physical dimensions to ensure functional equivalence.
