P1408-360

Overview

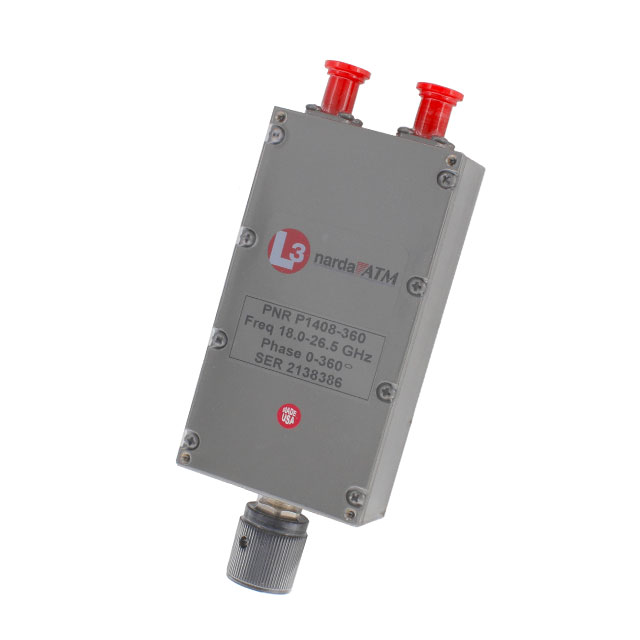

The P1408-360 is a phase shifter manufactured by L3 Narda-MITEQ, designed for high-frequency RF applications. It operates within the frequency range of 18 GHz to 26.5 GHz. The component is housed in a module package equipped with SMA connectors. It belongs to the P1400 product series and is categorized under RF miscellaneous ICs and modules.

Feature Summary

• Provides precise phase shifting capabilities for microwave signals
• Operates effectively across the 18 GHz to 26.5 GHz spectrum
• Utilizes SMA connector interface for integration

Applications

• Microwave communication systems
• RF signal processing
• High-frequency test equipment

Procurement Notes

Verify the specific datasheet requirements for insertion loss and phase accuracy before integration. Confirm that the SMA connector type matches your system interface. Ensure the operating frequency aligns with the 18 GHz to 26.5 GHz specification. Check for any environmental ratings if used in harsh conditions. Validate compatibility with existing RF infrastructure.

Selection Notes

Select this component when phase adjustment is required in the K-band or upper Ka-band ranges. Consider the module form factor for space-constrained designs. Evaluate the SMA interface against system connector standards. Assess thermal management needs based on power handling specifications. Compare performance metrics against alternative phase shifters in the same frequency band.

Part Context

This part belongs to the P1400 series from L3 Narda-MITEQ, a manufacturer specializing in microwave and RF components. The series focuses on providing reliable solutions for high-frequency applications. The P1408-360 specifically addresses phase control needs in the 18-26.5 GHz range, fitting into the broader portfolio of RF modules and ICs offered by the brand.

Replacement Considerations

Consult official substitution guides for compatible phase shifters within the same frequency range. Verify electrical parameters such as phase shift accuracy and insertion loss match the original specifications. Ensure mechanical compatibility with existing SMA connector interfaces. Review manufacturer recommendations for direct replacements or functional equivalents.
