P1J-5-AX16PA

Pressure Sensors Transducers Overview

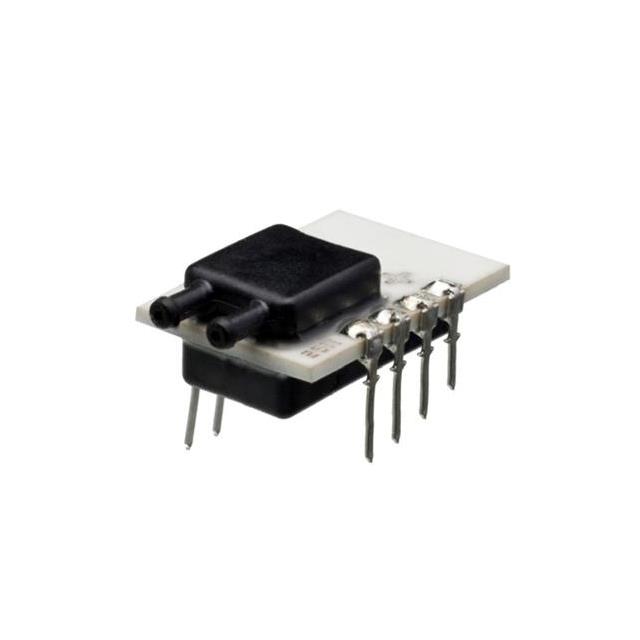

The P1J-5-AX16PA is a differential piezoresistive pressure sensor manufactured by Sensata Technologies under the Kavlico brand. It features a digital I2C output interface and operates within an ambient temperature range of -20°C to 85°C. The device utilizes a through-hole mounting style in an 8-DIP package with dual barbed ports on the same side for fluid connection. Key electrical parameters include a maximum pressure rating of 1.02 PSI (7 kPa) and an operating pressure of 0.18 PSI (1.25 kPa).

Pressure Sensors Transducers Feature Summary

• Incorporates a piezoresistive sensing element housed in a compact, board-mountable package.
• Provides digital data transmission via an I2C communication interface.
• Features dual barbed ports positioned on the same side for differential pressure measurement.

Pressure Sensors Transducers Applications

• Board mount pressure monitoring systems
• Low-pressure differential flow applications
• Industrial sensor modules requiring digital I2C integration

Pressure Sensors Transducers Procurement Notes

Verify component authenticity against official Sensata Technologies documentation. Confirm that the specific suffix AX16PA matches the required I2C interface and port configuration. Check current availability status as this part may be classified as obsolete or end-of-life depending on regional distributor inventory. Ensure environmental compliance requirements align with project specifications before finalizing procurement orders.

Pressure Sensors Transducers Selection Notes

Select this model when a low-range differential pressure measurement is required with digital I2C connectivity. The 8-DIP through-hole package suits prototyping or fixed installations where surface-mount space is not constrained. Verify that the 0.18 PSI operating range fits the target application's dynamic pressure limits. Consider thermal stability requirements within the specified -20°C to 85°C operational window.

Pressure Sensors Transducers Part Context

This component belongs to the P1J series of pressure sensors from Sensata Technologies' Kavlico division. The series integrates piezoresistive technology into standard DIP packages, offering both SPI and I2C digital outputs. This specific variant targets low-pressure differential applications, distinguishing itself from higher-range analog counterparts within the broader product family.

Pressure Sensors Transducers Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Users should consult Sensata Technologies directly for current lifecycle status and potential cross-reference recommendations for obsolete components.
