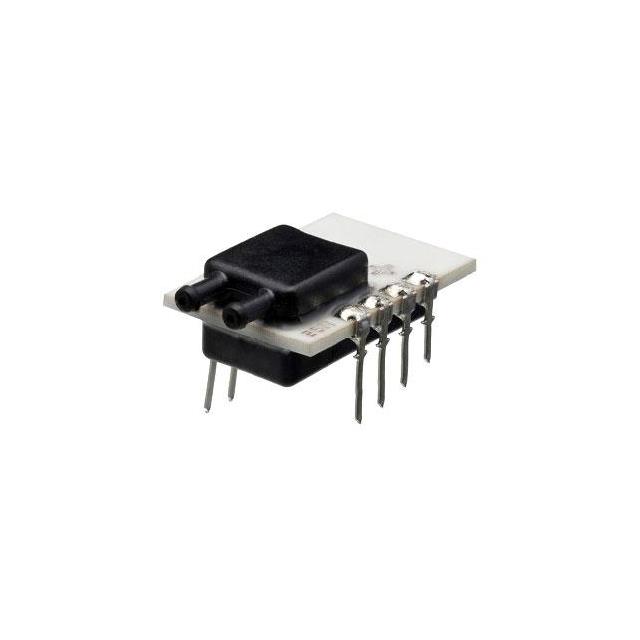

P1K-5B-2X16PA is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Sensata Technologies, Inc.. Its product description is SENSOR 0.18PSI 4V. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for P1K-5B-2X16PA
- Description：SENSOR 0.18PSI 4V
- Series：-
- Mfr：Sensata Technologies, Inc.
- Package：Bulk
- Applications：Board Mount
- Pressure Type：-
- Operating Pressure：-0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa)
- Output Type：Analog Voltage
- Output：0.25 V ~ 4 V
- Accuracy：±0.25%
- Voltage - Supply：4.75V ~ 5.25V
- Port Size：-
- Port Style：Barbed
- Features：Temperature Compensated
- Termination Style：PC Pin
- Maximum Pressure：-
- Operating Temperature：-20°C ~ 85°C
- Mounting Type：Through Hole
- Package / Case：8-DIP Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for P1K-5B-2X16PA
Pressure Sensors Transducers Overview
The P1K-5B-2X16PA is a piezo-resistive pressure sensor from Sensata Technologies, designed for board mount applications. It features an operating pressure range of -0.18 PSI to 0.18 PSI (-1.25 kPa to 1.25 kPa). The device operates with a 5 VDC supply voltage and provides a proportional analog output signal ranging from 0.25 VDC to 4.0 VDC. This configuration allows for precise measurement of low-pressure differentials or gauge pressures in compact electronic systems.
Pressure Sensors Transducers Feature Summary
- Utilizes piezo-resistive sensing technology for accurate pressure detection
- Includes internal temperature compensation to ensure stable performance across varying thermal conditions
- Provides a linear analog voltage output directly proportional to the applied pressure
Pressure Sensors Transducers Applications
- Board mount integration in industrial control systems
- Low-pressure differential monitoring in fluid handling equipment
- HVAC system pressure sensing applications
Pressure Sensors Transducers Procurement Notes
Verify component authenticity through authorized Sensata distributors. Confirm that the specific suffix matches the required pressure range and output characteristics. Check for RoHS compliance status and ensure storage conditions maintain moisture sensitivity level integrity prior to assembly.
Pressure Sensors Transducers Selection Notes
Select this model when a low-range pressure measurement is required within a constrained board space. Ensure the system power supply is strictly regulated at 5 VDC to maintain output accuracy. Validate that the expected pressure environment remains within the specified ±0.18 PSI operational limits to prevent sensor damage.
Pressure Sensors Transducers Part Context
This component belongs to the P1K series of piezo-resistive pressure sensors manufactured by Sensata Technologies. The series is characterized by its small form factor and suitability for surface-mount or board-level integration. It serves as a specialized solution for applications requiring reliable, compensated pressure data in tight spatial constraints.
Pressure Sensors Transducers Replacement Considerations
No public confirmed substitute part numbers are available for this obsolete component. Evaluate alternative sensors from the same manufacturer series only if they match the exact pressure range and pinout configuration.
