P522306

Antennas RF Overview

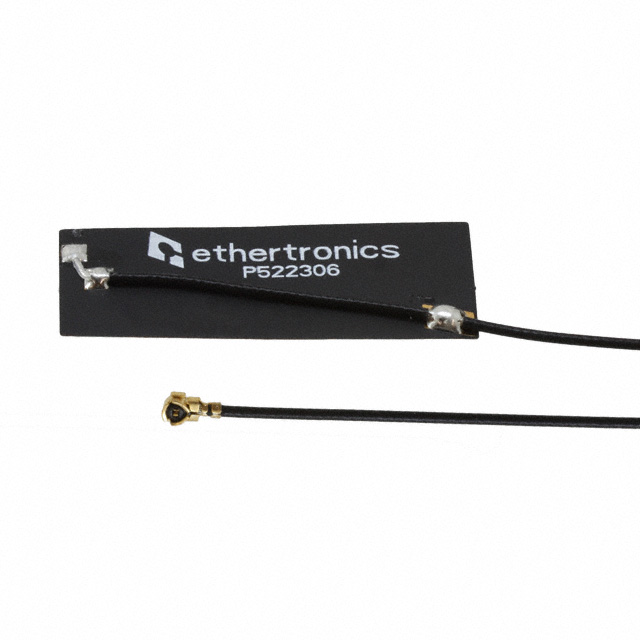

The P522306 is a flat patch RF antenna manufactured by KYOCERA AVX, designed for multi-band cellular applications. It supports CDMA, DCS, GSM, PCS, UMTS, and WCDMA frequency ranges. The component features an I-PEX MHF1 connector interface and utilizes adhesive mounting for secure integration into mobile devices.

Antennas RF Feature Summary

• Supports multiple cellular standards including CDMA, GSM, UMTS, and WCDMA
• Utilizes a compact flat patch design suitable for space-constrained mobile devices
• Equipped with an I-PEX MHF1 connector for reliable signal transmission

Antennas RF Applications

• Mobile phone internal antenna integration
• Wireless communication device development
• Multi-band cellular handset prototyping

Antennas RF Procurement Notes

Verify the specific connector type and mounting method against your PCB layout requirements. Confirm that the adhesive backing is compatible with your assembly process. Ensure the selected part number matches the required frequency bands for your target market regulations.

Antennas RF Selection Notes

Select this component when a low-profile solution for multi-band cellular support is required. Consider the I-PEX MHF1 interface compatibility with your system's RF front-end. Evaluate the adhesive mounting option if mechanical retention without through-hole components is preferred for thin form factors.

Antennas RF Part Context

This antenna belongs to KYOCERA AVX's portfolio of RF solutions for mobile communications. It addresses the need for integrated, multi-standard connectivity in modern handheld devices, replacing discrete antenna elements with a unified patch design.

Antennas RF Replacement Considerations

Check for updated series antennas from KYOCERA AVX offering similar band coverage. Verify connector compatibility if substituting with other brands using different RF interfaces.
