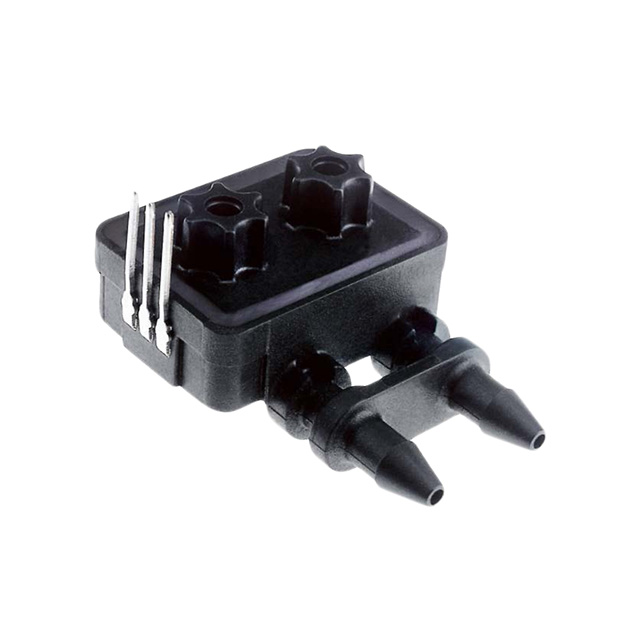

P993-5B is listed in the Pressure Sensors Transducers range at ChipApex. The manufacturer field lists Sensata Technologies, Inc.. Its product description is SENSOR 0.18PSID 4V. Review the specifications below when checking this part for your BOM.
Pressure Sensors Transducers specifications for P993-5B
- Description：SENSOR 0.18PSID 4V
- Series：-
- Mfr：Sensata Technologies, Inc.
- Package：Bulk,Box
- Applications：Board Mount
- Pressure Type：Differential
- Operating Pressure：-0.18PSI ~ 0.18PSI (-1.25kPa ~ 1.25kPa)
- Output Type：Analog Voltage
- Output：0.25 V ~ 4 V
- Accuracy：-
- Voltage - Supply：-
- Port Size：-
- Port Style：Barbed
- Features：Temperature Compensated
- Termination Style：PC Pin
- Maximum Pressure：-
- Operating Temperature：-10°C ~ 60°C
- Mounting Type：Through Hole
- Package / Case：3-SIP Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Pressure Sensors Transducers datasheet and documents for P993-5B
Pressure Sensors Transducers Overview
The P993-5B is a low-range differential pressure sensor from Sensata Technologies, designed for PCB mounting. It utilizes a silicon capacitive sensing element to measure differential pressures within the range of -0.18 PSI to 0.18 PSI (-1.25 kPa to 1.25 kPa). The device operates with a standard 5 VDC input supply and provides a proportional analog output signal ranging from 0.25 VDC to 4.0 VDC. Packaged in a compact 3-SIP module format, this component integrates precision sensing capabilities suitable for applications requiring accurate monitoring of small pressure differentials.
Pressure Sensors Transducers Feature Summary
- Incorporates a silicon capacitive sensing element for precise measurement
- Provides an analog voltage output signal proportional to applied pressure
- Designed for direct PCB mounting in a compact SIP package
Pressure Sensors Transducers Applications
- HVAC systems
- Environmental monitoring equipment
- Industrial process control
Pressure Sensors Transducers Procurement Notes
Verify the specific ordering suffix against official Sensata documentation to confirm exact electrical characteristics and mechanical dimensions. Ensure that the selected variant matches the required pressure range and output signal specifications for the target application. Cross-reference part numbers with manufacturer catalogs to avoid discrepancies between generic series descriptions and specific model configurations.
Pressure Sensors Transducers Selection Notes
Select the P993-5B when a compact, PCB-mountable solution is required for low-range differential pressure monitoring. Consider the 5 VDC operating requirement and the 0.25 to 4.0 VDC output span during circuit design. Evaluate the silicon capacitive technology benefits regarding stability and sensitivity compared to other sensing methods available in the product family.
Pressure Sensors Transducers Part Context
The P993 series represents a line of low-range differential pressure sensors manufactured by Sensata Technologies. These devices are characterized by their use of silicon capacitive technology and compact form factors suitable for integration into various electronic assemblies. The series offers standardized output signals compatible with common industrial control interfaces.
Pressure Sensors Transducers Replacement Considerations
Consult official Sensata substitution guides for verified alternative part numbers. Generic cross-references may not guarantee identical performance characteristics or pinout compatibility.
