PAM8823FBE48-13

Overview

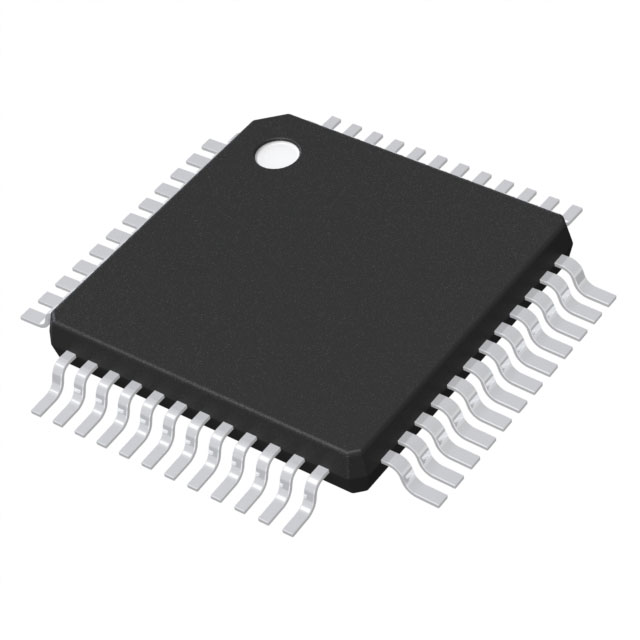

The PAM8823FBE48-13 is a Class-D digital audio amplifier manufactured by Diodes Incorporated. It delivers an output power of 25 W and operates within a supply voltage range of 4.5 V to 26 V. The device utilizes a QFP-48 package with surface mount installation. Key functional attributes include a shutdown control feature and compatibility with digital inputs.

Feature Summary

• Class-D digital audio amplification architecture
• Integrated shutdown control functionality
• Digital input signal processing capability

Applications

• Audio amplifier systems
• Digital input audio applications

Procurement Notes

Verify the manufacturer part number PAM8823FBE48-13 against official Diodes Incorporated documentation to confirm specifications. Ensure the QFP-48 package type and 25 W output rating match design requirements. Confirm the 4.5 V to 26 V operating voltage range for system compatibility before procurement.

Selection Notes

Select this component for designs requiring a Class-D amplifier with digital input support. Verify that the QFP-48 package fits the PCB layout constraints. Ensure the power supply provides between 4.5 V and 26 V. Check if the 25 W output power meets the load requirements.

Part Context

This component belongs to the PAM8823 series of audio ICs produced by Diodes Incorporated. It is categorized under digital audio amplifiers within the broader audio IC product line. The specific suffix indicates the package and tape-and-reel configuration.

Replacement Considerations

No publicly confirmed substitute part numbers are available in the provided data.
