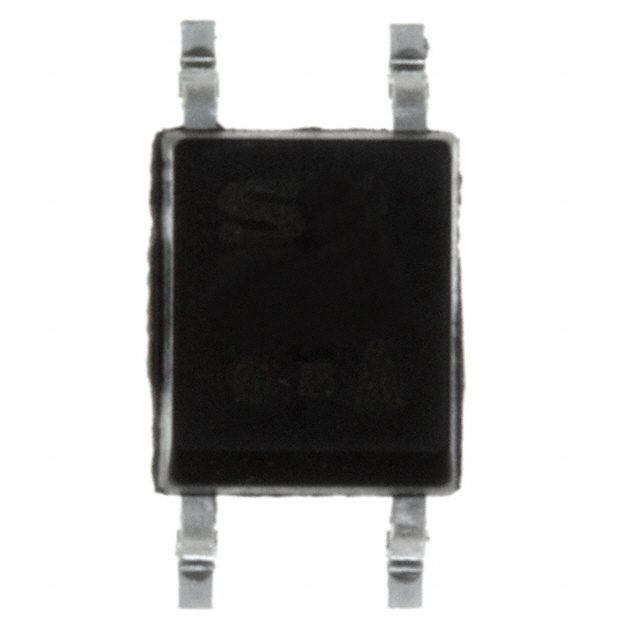

PC367NTJ000F

Transistor, Photovoltaic Output Optoisolators Overview

The PC367NTJ000F is a single-channel transistor output optocoupler manufactured by Sharp Microelectronics. It features a 4-Mini-Flat surface-mount package with 3750Vrms isolation voltage. The device supports a maximum collector-emitter voltage of 80V and a continuous output current of 50mA. Typical rise and fall times are 4µs and 3µs, respectively. The current transfer ratio ranges from 100% to 500% at a forward current of 500µA. Operating temperature spans -30°C to 100°C.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• Provides high-voltage electrical isolation between input and output circuits
• Utilizes a compact surface-mount Mini-Flat package for space-constrained designs
• Features low input drive requirements suitable for various logic families

Transistor, Photovoltaic Output Optoisolators Applications

• General-purpose signal isolation in industrial control systems
• Interface circuits for microcontrollers and digital logic
• Power supply feedback loops requiring galvanic separation

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and check for recent Product Change Notifications (PCNs) regarding manufacturing site transfers. Ensure the specific suffix matches design requirements as this variant is marked as obsolete in some catalogs.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when a compact footprint and moderate speed are required. Compare against the PC367NJ000F series for active alternatives if availability is a constraint. Evaluate thermal management needs within the Mini-Flat package limits and ensure the 80V output rating exceeds circuit peak voltages.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to the Sharp PC367 series of low-input-current photocouplers. It shares architectural similarities with other members like the PC367N2J000F but differs in specific ranking and packaging details. The series is designed for general-purpose isolation applications where size and cost efficiency are prioritized over high-speed performance.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

The PC367NJ000F is listed as a similar replacement option. Verify pinout compatibility and electrical parameter alignment before substitution.
