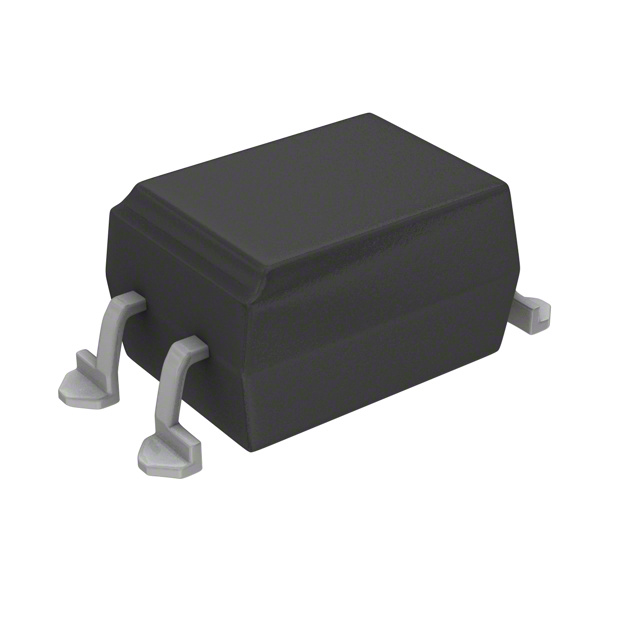

PC4H520NIP0F

$0.88

Description：OPTOISO 2.5KV DARL 4-MINI-FLAT
Series：-
Mfr：Sharp Microelectronics
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:0ed0b6ec07d7 Category: Transistor, Photovoltaic Output Optoisolators Brand: Sharp Microelectronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

PC4H520NIP0F is listed in the Transistor, Photovoltaic Output Optoisolators range at ChipApex. The manufacturer field lists Sharp Microelectronics. Its product description is OPTOISO 2.5KV DARL 4-MINI-FLAT. Review the specifications below when checking this part for your BOM.

Transistor, Photovoltaic Output Optoisolators specifications for PC4H520NIP0F

Description：OPTOISO 2.5KV DARL 4-MINI-FLAT
Series：-
Mfr：Sharp Microelectronics
Package：Tape & Reel (TR),Cut Tape (CT)
Number of Channels：1
Voltage - Isolation：2500Vrms
Current Transfer Ratio (Min)：1000% @ 1mA
Current Transfer Ratio (Max)：-
Turn On / Turn Off Time (Typ)：-
Rise / Fall Time (Typ)：100µs, 20µs
Input Type：DC
Output Type：Darlington
Voltage - Output (Max)：350V
Current - Output / Channel：120mA
Voltage - Forward (Vf) (Typ)：1.2V
Current - DC Forward (If) (Max)：50 mA
Vce Saturation (Max)：1.4V
Operating Temperature：-40°C ~ 100°C
Mounting Type：Surface Mount
Package / Case：4-SOIC (0.173", 4.40mm Width)
Supplier Device Package：4-Mini-Flat
Grade：-
Qualification：-

Transistor, Photovoltaic Output Optoisolators datasheet and documents for PC4H520NIP0F

PC4H520NIP0F

Transistor, Photovoltaic Output Optoisolators Overview

The PC4H520NIP0F is a Darlington output optoisolator manufactured by Sharp Microelectronics. It provides electrical isolation with a maximum voltage of 350V and an isolation rating of 2500Vrms. The device features a typical forward voltage of 1.2V and a maximum collector-emitter saturation voltage of 1.4V. It operates within a temperature range of -30°C to 100°C and is housed in a 4-SMD package.

Transistor, Photovoltaic Output Optoisolators Feature Summary

Darlington transistor output configuration for high current transfer capability
High isolation voltage rating of 2500Vrms for robust signal separation
Low maximum collector-emitter saturation voltage of 1.4V

Transistor, Photovoltaic Output Optoisolators Applications

Industrial control systems requiring galvanic isolation
Power supply feedback loops
Signal transmission across isolated boundaries

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm datasheet revisions and RoHS compliance status prior to integration. Ensure storage conditions meet moisture sensitivity level requirements to maintain reliability during assembly processes.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high current gain is required from the phototransistor output. The Darlington structure offers superior sensitivity compared to standard transistor outputs. Verify that the 1.4V saturation voltage meets system power dissipation constraints and that the 2500Vrms isolation rating satisfies safety standards.

Transistor, Photovoltaic Output Optoisolators Part Context

This part belongs to Sharp Microelectronics' optoisolator family, designed for reliable signal coupling between low-power control circuits and higher-power loads. The PC4H520NIP0F specifically utilizes a Darlington pair to enhance current transfer efficiency while maintaining compact surface-mount packaging for automated assembly.
