PC512

Transistor, Photovoltaic Output Optoisolators Overview

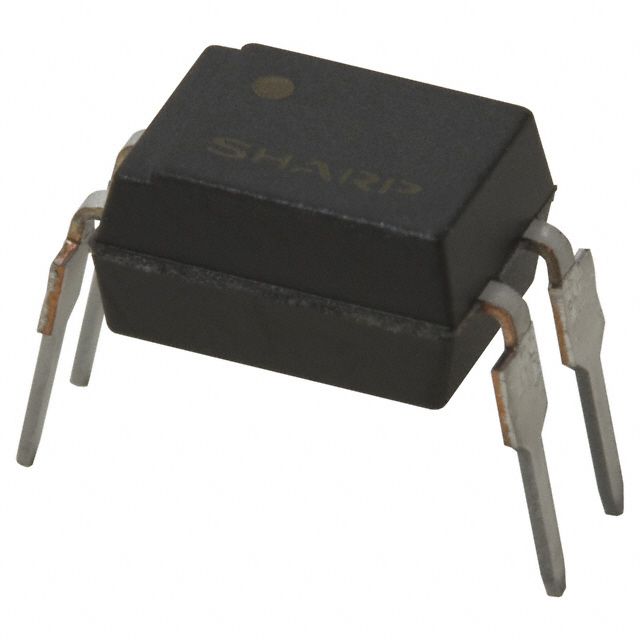

The PC512 is a single-channel transistor output optocoupler manufactured by Sharp Microelectronics. It features a 4-DIP module package designed for surface mount or through-hole integration. The device provides an isolation voltage of 5000 Vrms, ensuring robust electrical separation between input and output circuits. Key electrical parameters include a maximum collector-emitter voltage of 350 V and a DC forward current rating of 50 mA. The component operates within a temperature range of -25°C to +100°C.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• High isolation voltage capability of 5000 Vrms for safe circuit separation
• Transistor output configuration suitable for digital signal transmission
• Compact 4-DIP module packaging for efficient board space utilization

Transistor, Photovoltaic Output Optoisolators Applications

• Industrial control systems requiring galvanic isolation
• Solid-state relay driver circuits
• Microcontroller interface isolation for noise immunity

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify the specific datasheet revision and manufacturing date code upon procurement. Confirm that the 4-DIP module form factor matches the target PCB footprint requirements. Ensure compliance with RoHS directives if applicable to the end application. Cross-reference part numbers carefully as Sharp Microelectronics product lines may have undergone naming conventions changes over time.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high isolation voltage is critical alongside compact physical dimensions. The transistor output type is appropriate for switching applications rather than linear amplification. Consider the operating temperature range limits for environments exceeding standard industrial specifications. Evaluate the package style compatibility with existing assembly processes before finalizing the design.

Transistor, Photovoltaic Output Optoisolators Part Context

This component belongs to Sharp Microelectronics' portfolio of optoelectronic isolation devices. It serves as a fundamental building block for creating electrically isolated interfaces in electronic systems. The device leverages LED-to-phototransistor technology to transmit signals across insulating barriers without direct electrical contact.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout compatibility and electrical parameter margins when considering alternative manufacturers' equivalents.
