PC853XPJ000F

Transistor, Photovoltaic Output Optoisolators Overview

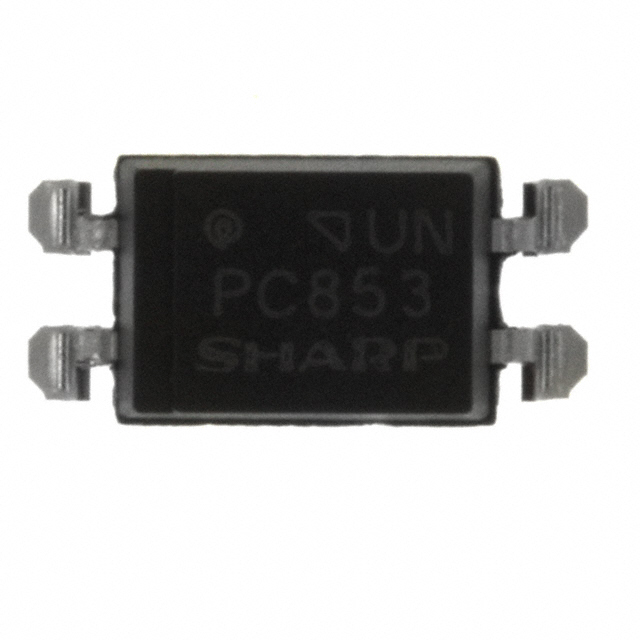

The PC853XPJ000F is a single-channel optoisolator manufactured by Sharp Microelectronics, featuring a Darlington transistor output. It provides high isolation voltage of 5000Vrms and supports a maximum collector-emitter voltage of 350V with a peak output current of 150mA. The device operates within a temperature range of -30°C to 100°C and utilizes a 4-SMD鸥翼 (gull-wing) surface-mount package. Key electrical parameters include a typical forward voltage of 1.2V, a maximum DC forward current of 50mA, and a minimum current transfer ratio of 1000% at 1mA input. Typical switching times are 100µs for rise and 20µs for fall.

Transistor, Photovoltaic Output Optoisolators Feature Summary

• High-voltage isolation capability up to 5000Vrms for robust circuit separation
• Darlington output configuration providing high current gain and drive capacity
• Wide operating temperature range suitable for demanding industrial environments
• Surface-mount packaging designed for automated assembly processes

Transistor, Photovoltaic Output Optoisolators Applications

• Industrial motor control systems requiring high isolation
• Power supply feedback loops for signal isolation
• Solid-state relay driver circuits
• Microcontroller interface isolation in noisy environments

Transistor, Photovoltaic Output Optoisolators Procurement Notes

Verify component authenticity through official Sharp Microelectronics channels or authorized distributors due to the discontinued status. Confirm package integrity and pin alignment against the 4-SMD gull-wing specification. Review datasheet revisions for any historical parameter updates. Ensure storage conditions comply with moisture sensitivity level 1 requirements prior to soldering.

Transistor, Photovoltaic Output Optoisolators Selection Notes

Select this component when high isolation voltage and significant current drive are required from a single channel. The Darlington output offers higher gain than standard phototransistors but exhibits slower switching speeds. Evaluate thermal management needs given the power dissipation characteristics. Consider availability constraints as the part is marked as obsolete in recent supplier records.

Transistor, Photovoltaic Output Optoisolators Part Context

This component belongs to Sharp's PC series of optocouplers, specifically designed for general-purpose isolation applications. The PC853 variant distinguishes itself through its Darlington output stage, offering superior current transfer ratios compared to standard transistor outputs. It serves as a bridge between low-power control logic and high-power load circuits while maintaining electrical safety barriers.

Transistor, Photovoltaic Output Optoisolators Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Due to the discontinued status, alternative components must be evaluated based on matching isolation voltage, output type, and package dimensions.
