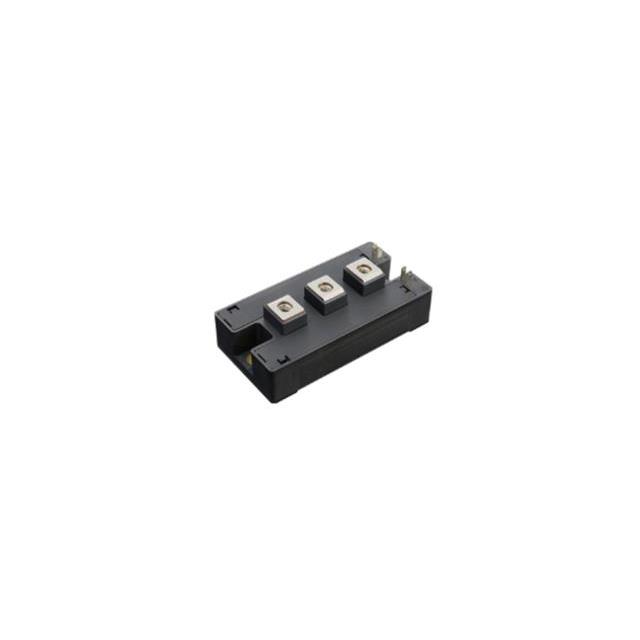

PCHMB75W12

$64.12

Description：IGBT MODULE, 1IN1, CHOPPER CIRCU
Series：-

SKU:f7d9bdee6f47 Category: IGBT Modules Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IGBT MODULE, 1IN1, CHOPPER CIRCU
Series：-
Mfr：KYOCERA AVX
Package：Bulk
IGBT Type：-
Configuration：Single
Vce(on) (Max) @ Vge, Ic：2V @ 15V, 75A
Input：Standard
NTC Thermistor：No
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：75 A
Power - Max：290 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：8000 pF @ 25 V

Download product information

PCHMB75W12

Overview

The PCHMB75W12 is a single IGBT module manufactured by KYOCERA AVX. It features a collector-emitter voltage (VCEO) of 1.2 kV and a continuous collector current of 75 A at 25°C. The device includes an integrated fast recovery diode (FRD) in a chopper circuit configuration. Key electrical parameters include a collector-emitter saturation voltage of 1.5 V and a gate-emitter leakage current of 1 µA. The module operates within a temperature range of -40°C to +150°C.

Feature Summary

Integrates an IGBT with a fast recovery diode in a single chopper circuit topology
Designed for high-voltage applications with 1.2 kV blocking capability
Supports screw mount installation for robust chassis connections

Applications

Industrial motor drives
Power conversion systems
Chopper circuits

Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status and environmental declarations prior to integration. Ensure handling procedures meet ESD protection standards. Validate thermal management requirements against the specified operating temperature range. Check for end-of-life notifications as availability may be limited.

Selection Notes

Select this module for applications requiring high voltage isolation and moderate current capacity. Consider the 1.5 V saturation voltage for efficiency calculations. Ensure the mounting interface supports the required mechanical stress. Verify that the gate drive circuitry aligns with the specified leakage characteristics. Evaluate thermal dissipation needs based on the 75 A continuous current rating.

Part Context

This component belongs to the IGBT module series from KYOCERA AVX, designed for power electronics. It represents a discrete solution combining switching and rectification functions. The product line targets industrial and automotive power control applications requiring reliable high-voltage performance.
