Product Detailed Parameters
- Description：DIODE MOD GP 1600V 100A MOD
- Series：-
- Mfr：KYOCERA AVX
- Package：Bulk
- Diode Configuration：1 Pair Series Connection
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：1600 V
- Current - Average Rectified (Io) (per Diode)：100A
- Voltage - Forward (Vf) (Max) @ If：1.35 V @ 300 A
- Speed：Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：5 mA @ 1600 V
- Operating Temperature - Junction：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

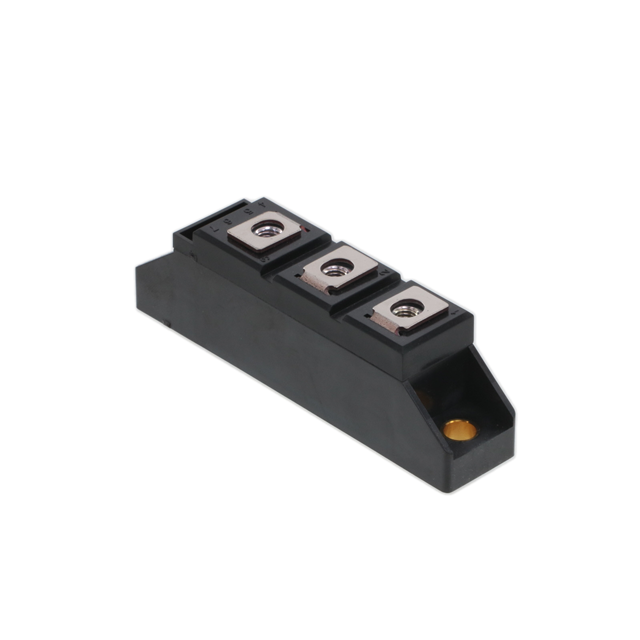

The PD100MYN16 is a silicon diode module manufactured by KYOCERA AVX, belonging to the PD series. It features a single configuration with screw mount installation. The device has a maximum DC reverse voltage of 1.6 kV and an average rectified output current of 100 A. The forward voltage is specified at 1.54 V. Operating temperatures range from -40°C to +150°C junction temperature.
Feature Summary
- High power handling capability with 100 A average rectified current
- Robust voltage rating of 1.6 kV for high-voltage applications
- Wide operating temperature range extending to 150°C junction temperature
- Screw mount construction for secure mechanical attachment
Applications
- Industrial power conversion systems
- High voltage rectification circuits
- Power supply modules requiring robust thermal performance
Procurement Notes
Verify component status carefully as public records indicate discontinuation or limited availability for this specific part number. Confirm current stock levels and lead times directly with authorized distributors or the manufacturer before design finalization. Ensure compatibility with existing thermal management solutions given the 150°C junction limit.
Selection Notes
Select this module when high voltage isolation and significant current capacity are required in a compact screw-mount form factor. Consider the 1.54 V forward voltage drop for efficiency calculations. Evaluate thermal resistance requirements to maintain junction temperature within the specified -40°C to +150°C operational window during continuous operation.
Part Context
This component is part of KYOCERA AVX's discrete and power modules portfolio, specifically the PD series designed for general purpose and phase leg applications. It utilizes silicon technology for reliable high-power switching and rectification. The module format facilitates easy integration into larger power assemblies compared to individual discrete dies.
Replacement Considerations
Public documentation indicates the PD100KN16 as a related variant within the same series. Verify electrical parameters such as forward voltage and current ratings against the PD100MYN16 specifications before substitution. Check for any physical dimension differences to ensure mechanical fit in existing screw-mount layouts.
