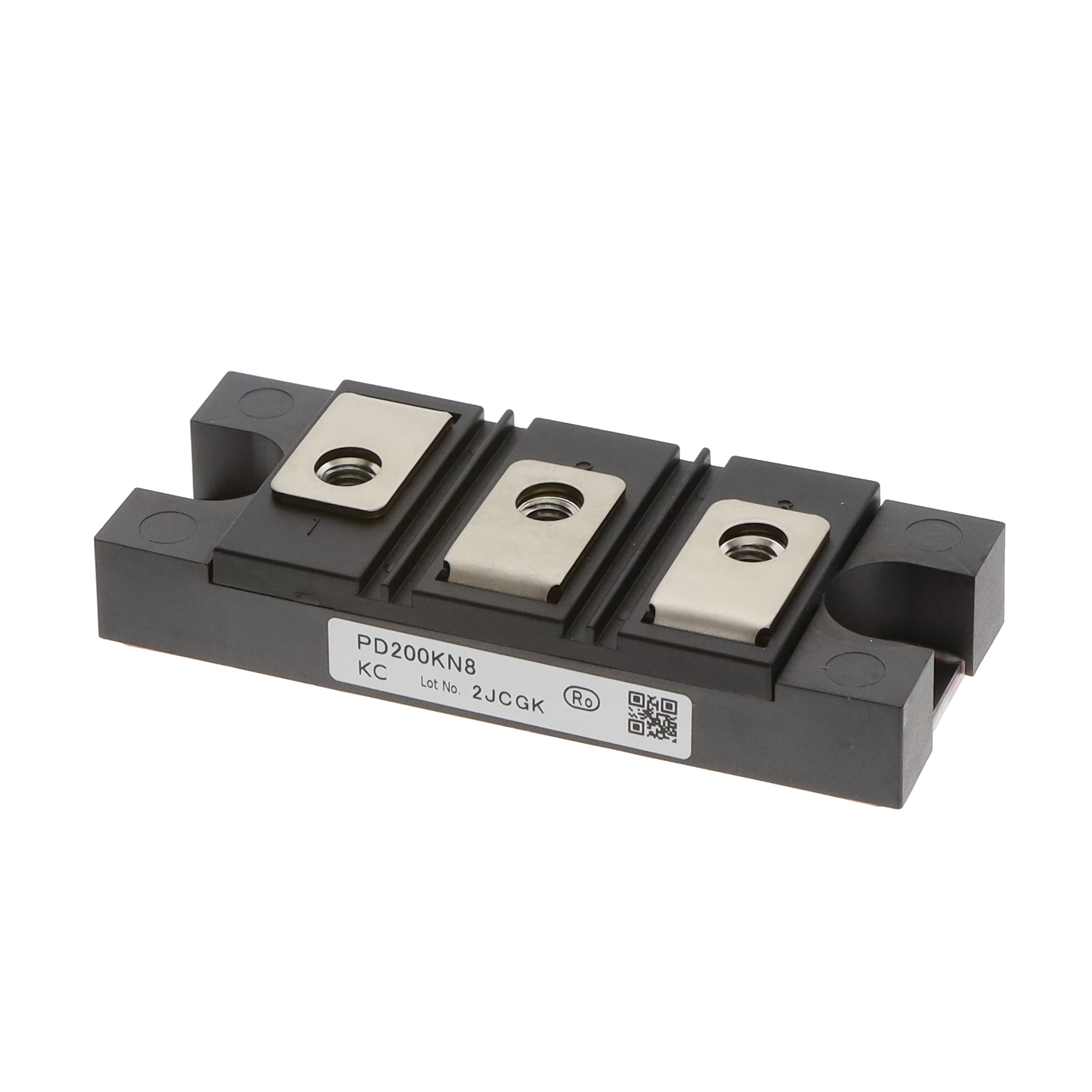

PD200KN8

$79.69

Description：DIODE MODULE GP 800V 200A MODULE
Series：-

SKU:5d161989e73b Category: Diode Arrays Brand: KYOCERA AVX

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：DIODE MODULE GP 800V 200A MODULE
Series：-
Mfr：KYOCERA AVX
Package：Bulk
Diode Configuration：1 Pair Series Connection
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：800 V
Current - Average Rectified (Io) (per Diode)：200A
Voltage - Forward (Vf) (Max) @ If：1.4 V @ 600 A
Speed：Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：17 mA @ 800 V
Operating Temperature - Junction：-40°C ~ 150°C
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：Module
Grade：-
Qualification：-

Download product information

PD200KN8

Overview

The PD200KN8 is a power diode manufactured by KYOCERA AVX Components. It is rated for a continuous forward average current of 200 Amperes and a repetitive peak reverse voltage of 800 Volts. This component is designed for high-current rectification applications in industrial and power conversion systems.

Feature Summary

High current handling capability for robust power rectification
Rated for high reverse voltage blocking
Designed for reliable operation in demanding electrical environments

Applications

Industrial power supplies
Motor drive rectification
General purpose high-power rectification circuits

Procurement Notes

Verify the manufacturer designation carefully, as the part number appears in databases associated with multiple vendors including Nihon Inter Electronics Corporation and Kinseki. Confirm that the specific datasheet provided matches the KYOCERA AVX specification sheet to ensure correct electrical ratings and package dimensions before procurement.

Selection Notes

Select this component when a single-diode solution requires 200A average current and 800V reverse voltage blocking. Ensure thermal management solutions are adequate for the expected forward voltage drop and ambient operating conditions. Verify package compatibility with existing PCB footprints.

Part Context

This part belongs to the category of high-power silicon rectifier diodes. It serves as a critical component in converting AC to DC in heavy-duty applications. The 200A rating places it in the medium-to-high power segment, suitable for equipment requiring substantial current throughput without parallel diode configurations.
